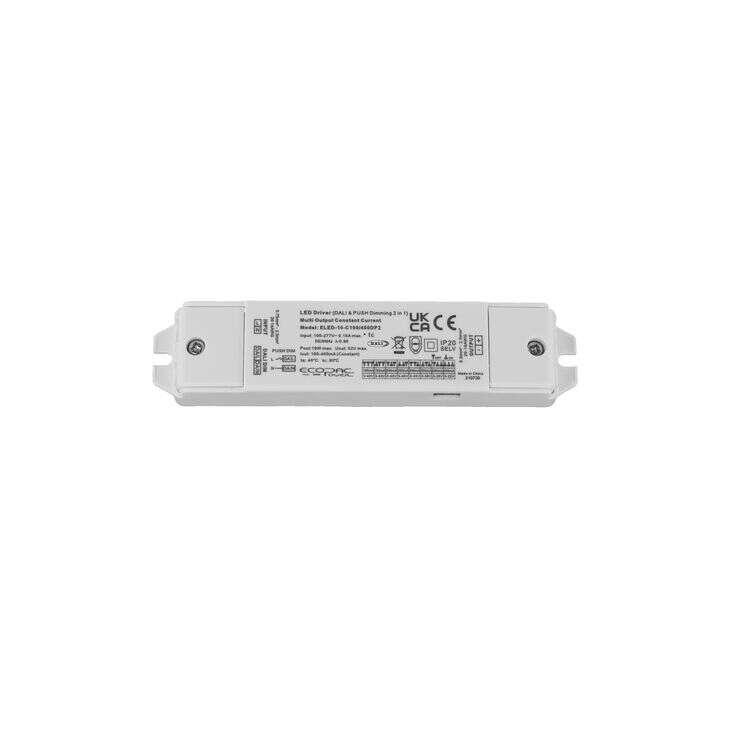

10W DALI2 and Push Dimming Multiple-Stage Output Current LED Drive Features:
• Constant Current mode output with multiple levels selectable by dip switch • DALI 2 dimming function (IEC62386) • AC input: 100-277VAC • Built-in active PFC function • Efficiency up to 79% • Protections: Short circuit/ Over load/Over temperature • Cooling by free air convection • Suitable for intelligent LED lighting
ELED-10-C100/450DP2(450mA)
ELED-10-C100/450DP2(400mA)
ELED-10-C100/450DP2(350mA)
ELED-10-C100/450DP2(300mA)
ELED-10-C100/450DP2(250mA)
ELED-10-C100/450DP2(200mA)
ELED-10-C100/450DP2(150mA)
ELED-10-C100/450DP2(100mA)
Wattage
10
10
10
10
10
8.4
6.3
4.2
Input Voltage
100~277VAC
100~277VAC
100~277VAC
100~277VAC
100~277VAC
100~277VAC
100~277VAC
100~277VAC
Output Current
450mA
400mA
350mA
300mA
250mA
200mA
150mA
100mA
Output Voltage
3~22
3~25
3~29
3~33
3~40
3~42
3~42
3~42
Dimensions
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
135 x 30x 20 mm
Working Temperature
-40~60°C
Safety Standards
EN61347-1, EN61347-2-13, UL8750
EMC Standards
Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
