FED Conversion Range

Please note this model is now obsolete, it has been replaced with the NLP/1-K

Specifications

• • Slim Module Suitable for Linear Applications
  • Long Life LiFePO4 Batteries
  • Strain Relief Module with Fitted Cables
  • Suitable for a Wide Range of LED Loads
  • ENEC Approved
  • BSI Kitemark Approved

• Mains Supply Voltage	230-240V AC 50/60Hz
  Emergency Duration	3 Hours
  Recharge Period	24 Hours
  LED Current Limit	320mA
  Battery Current Limit	1100mA
  Cut off Voltage	2.5V



  Double Pole Changeover Relay

  Additional 3rd Pole Relay

  Compact Design - will fit through a 45mm aperture

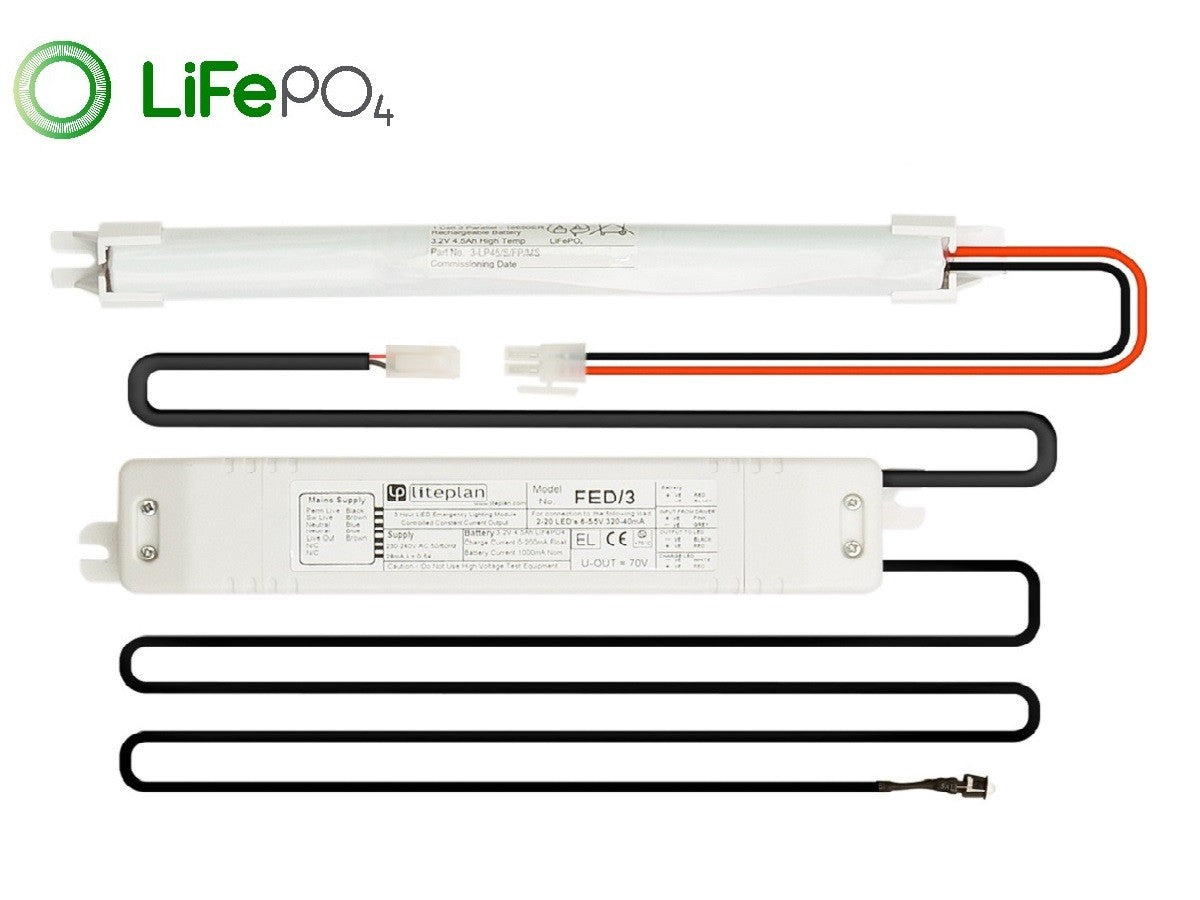

• The FED/3 has ENEC and BSI Kitemark Approval, itis a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED.

  This range pioneers the use of LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.
