Emergency LED Driver for Central Battery Systems

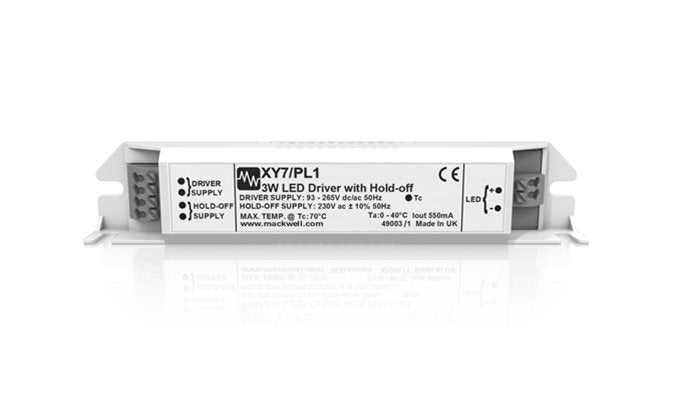

The ELEDD XY7 is a universal voltage input LED conversion module range, suitable for driving either one or two high power LED’s or LED strips from a central battery supply.
The module also includes the ability to monitor the mains supply to “Hold-Off” the LED Driver output when the mains supply is present.
Mackwell has a range of LED lamp heads and strips that can be used with this driver, which are available separately or as part of an LED Conversion Kit.
Specifications
Supply voltage105 - 265 V
Supply frequency50 Hz
Supply current - 275mA: V AC30 to 35 mA
Supply current - 275mA: V DC5Ma to 12mA
Supply current - 550mA: V AC45mA to 60mA
Supply current - 550mA: V DC10mA to 30mA
Power factor - 275mA0.2 to 0.4
Power factor - 550mA0.25 to 0.5
Ambient temperature (ta)-20°C to +40°C
Max case temperature (tc)70°C
Conductor size0.5 to 1.5mm²
Weight of control gear52g
Technology Options
Central Battery
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-off input to inhibit the LED driver output when a mains supply is connected.
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-off input to inhibit the LED driver output when a mains supply is connected.
