Wattage:
Voltage:
EAN:
Manufacturer:

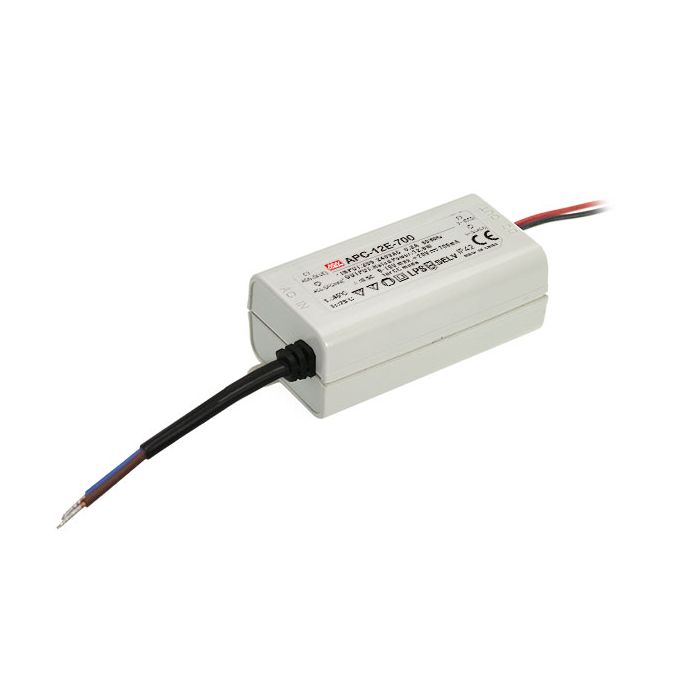

Constant CurrentFully isolated plastic caseProtections: Short circuit/ Over VoltageOther features:Small and compact sizeNo load power consumption <0.5WIP42 designClass II power unit, no FGCooling by free air convectionPass LPSSuitable for LED lighting and moving sign applications100% full load burn-in testLow cost, High reliability2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 9~36 DC Output Adjustment 9-36V Dimensions 77 x 40 x 29 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 180~264VAC; 254~370VDC Safety Standards IP42 approved; design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-12E-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 9~36 DC Output Adjustment 9-36V Dimensions 77 x 40 x 29 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 180~264VAC; 254~370VDC Safety Standards IP42 approved; design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-12E-spec.pdf
