1000-2000W IGNITOR
Description

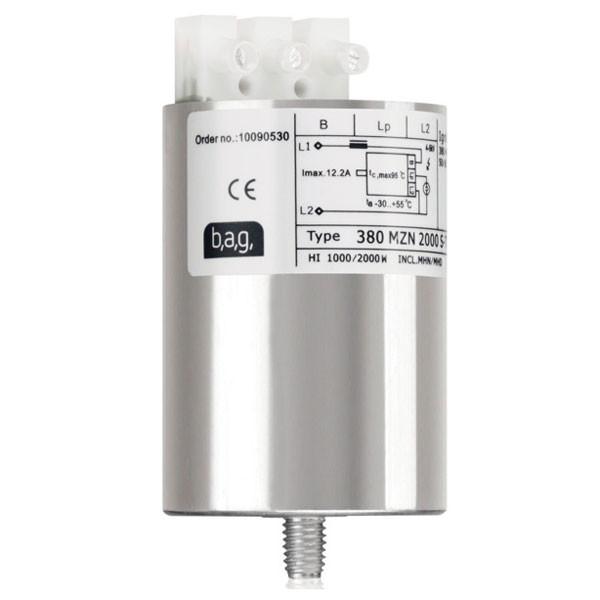

BAG MZN 1000/2000 IGNITOR
-
Superimposed igniter for metal halide (HI) and high-pressure sodium vapour (HS) lamps
-
Designed for long distances (up to 24 m) for a supply line capacity of 85 pF
-
Not suitable for HQI-NDL/WDL or HS-S- lamps (Super, Deluxe, Plus, Comfort)
| Type | MZN 1000/2000 | |
| Article number | 9070006 | |
| Approved mains voltage | V | 198 (207) … 264 |
| Approved mains frequency | Hz | 50 (60) |
| Max. continuous lamp current | A | 10.3 |
| Connecting terminals |
mm2
|
4 |
| Response / cut-out voltage | V | ≤198 (207) / ≥170 |
| Ignition voltage | kV | 3.0 … 5.0 |
|
Timer ignition time
|
s | – |
| Phase position | °el | 50 … 90 |
| Pulses per cycle | – |
≥1
|
| Approved load capacity | pF | 750 … 2000 |
| Internal losses at 25°C ambient temperature | W |
<6 (10.3 A)
<2 (4.6 A) |
| Rise in temperature at 25°C ambient temperature | K | <30 (10.3 A) <6 (4.6 A) |
| Max. housing temperature tc | °C | 95 |
| Approved ambient temperature ta | °C | (negative) 30 … + 60 (10.3 A) / (negative) 30 … + 85 (4.6 A) |
| Weight | kg | 0.35 |
