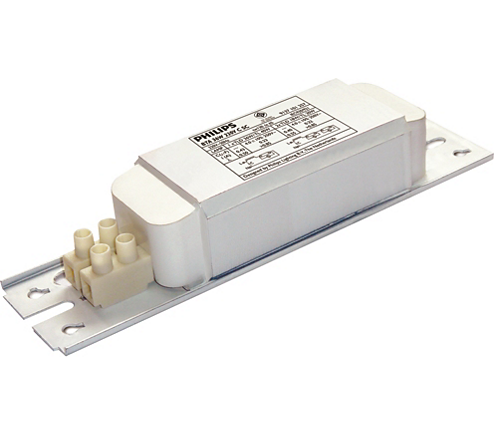

BTA 18W 230V C SC

Specifications

Similar to   L18A-l EC18A502K LN18.114 LN18I.319

General Information

Application Code

18W

Design

C

Operating and Electrical

Input Voltage	230 V
Input Frequency	50 Hz
Mains Voltage Performance (AC)	-8%-+6%
Mains Voltage Safety (AC)	-10%-+10%

Power Factor with PF Compensation	0.85
Power Factor without PF Compensation (Nom)	0.35
Power Losses (Nom)	9.0 W

Wiring

Wire Striplength	8.0 mm
Ballast Contact Wire Cross Section	0.50-1.00 mm²

Connector Type

Screw

System characteristics

Rated Ballast-Lamp Power

18 W

Temperature

T-Storage (Max)	80 °C
T-Storage (Min)	-40 °C

T-Winding (Max)	130 °C
Delta-T Normal Conditions	65 °C

Mechanical and Housing

Housing

L 155x39x28

Approval and Application

Energy Efficiency Index

C

Approval Marks

CE marking

Product Data

Full product code	871016303364830
Order product name	BTA 18W 230V C SC
EAN/UPC - Product	8710163148632
Order code	913710111750

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	32
Material Nr. (12NC)	913710111750
Net Weight (Piece)	0.500 kg
