Power factor capacitors for use in discharge lamp circuits.

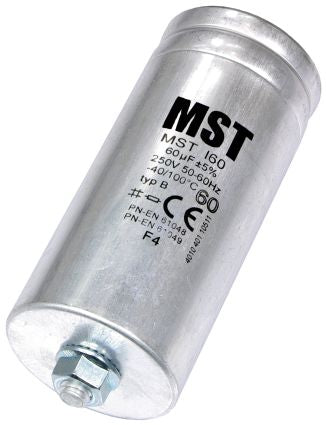

# image of 60MFD you will be supplied 100MFD
Main characteristics:
- Type B, aluminium housing
- Low inductance
- Push-in terminal (Wago 214 terminal) or cable (2x0,75mm²)
- Self-healing ability
- Overpressure safety break-action mechanism
- Discharge resistor
- Requirement a clearance of at least 10mm above
the terminals to ensure proper activation break action mechanism
Technical data:
Parameter |
Value |
Tolerance of capacitance |
±5% |
Rated frequency |
50/60Hz |
Relative humidity in capacitor environment at 20÷25°C |
75% (annual average) 95% (max value within 30 days) |
95% (max value within 30 days) |
|
Service life |
30000h |
Condensation |
Not permitted |
Dissipation factor (tgd) |
≤ 0,0015 at 50Hz/250V |
Dielectric strength: |
|
- between terminals |
2U_N/50Hz - 2sec. |
- between terminals connected together and case |
2kV / 50Hz - 2sec |
