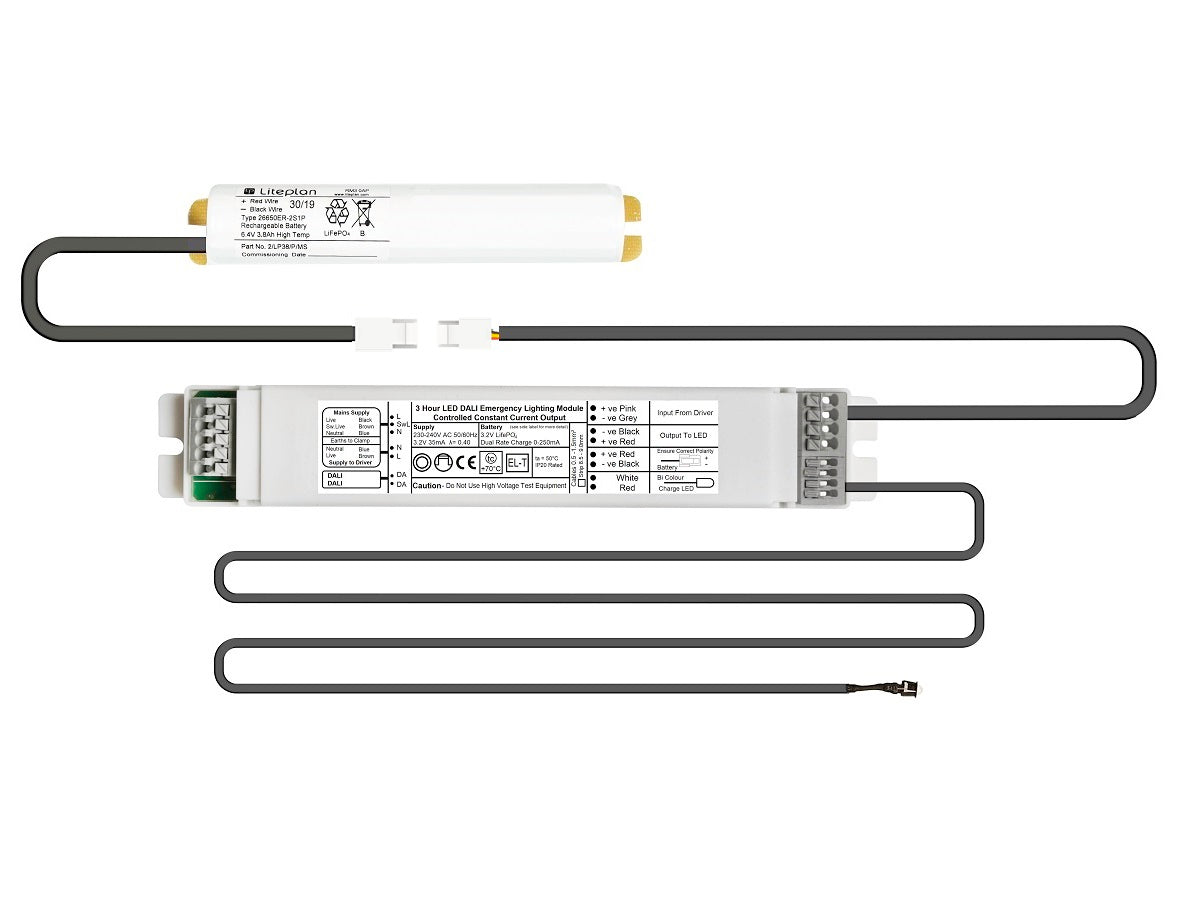

The Liteplan D2N/2-K is a 3 hour High Output DALI-2 self-test emergency lighting conversion kit, designed to suit a wide range of LED types and circuits. It supplies the module, a two cell LiFePO4 battery and a charge LED indicator, for LED loads from 10-55V forward voltage.
- DiiA registered DALI-2 device
- Control: DALI-2 addressable, reverts to standalone self-test if commissioned without a DALI system
- Automatically adjusts the output LED current to match the battery and the load
- Average emergency output 5.0W, P rated 3W to 80W, I rated 400mA to 91mA
- Battery: 6.4V 3.8Ah LiFePO4, with temperature protection (stops charging below 0°C or above 55°C)
- 2-pole changeover relay plus additional 3rd pole relay for driver protection
- Deep discharge protection and low energy charging circuit
- Mains supply 230-240V AC 50/60Hz, recharge period 24 hours
- Slim module for integral mounting, 178mm x 30mm x 22.5mm
- TUV tested and certified, suitable for the LiteMesh wireless monitoring system
Need more LED voltage range? See the D2N/2S/80-K for loads from 10-80V.
