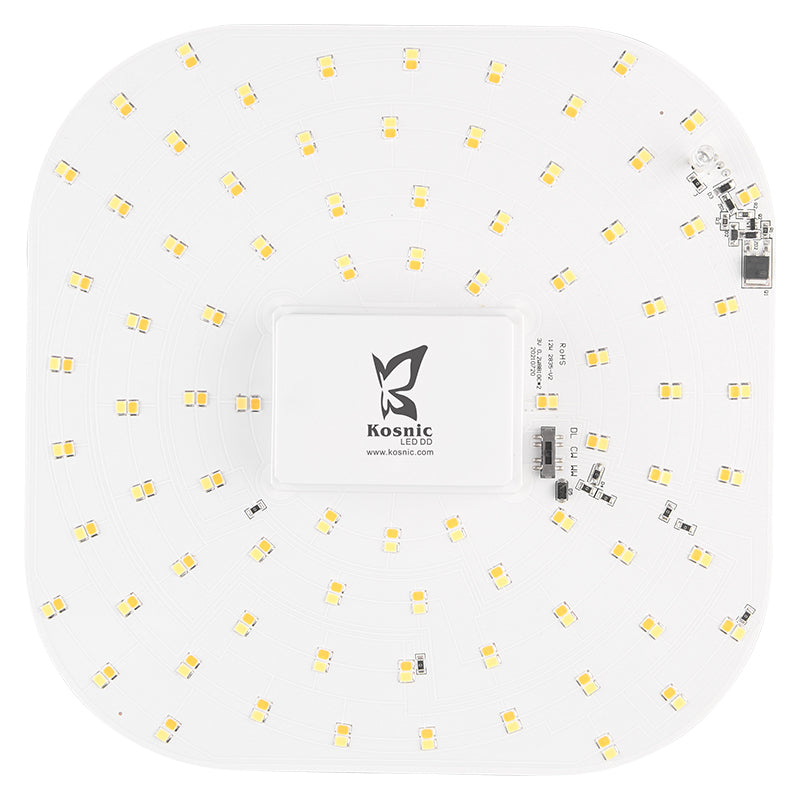

Kosnic’s range of LED DD lamps takes a fresh approach to functional lighting with a design philosophy offering plug-in emergency packs and optional microwave sensor versions so that there are no barriers to retrofitting LEDs in commercial fittings. The products bring the energy saving capabilities of LED technology to the commercial environment and the lamps can quickly replace fluorescent DD lamps with little or no rewiring.
Additional information
| CCT |
4000 (2700, 6500)
|
| Rated Power (W) |
18
|
| Current (mA) |
83
|
| CCT Words |
Cool White (Warm White / Day Light)
|
| CCT (K) |
4000 (2700, 6500)
|
| Total Luminous Flux (lm) |
2400 (2100, 2100)
|
| Nominal Lifetime (h) |
30000
|
| L70B50 Lifetime (h) |
54000
|
| L80B10 Lifetime (h) |
54000
|
| L90 Lifetime (h) |
42000
|
| Blue Light Hazard |
RG1
|
| Power Factor |
0.94
|
| Dimensions L x W x D (mm) |
33*φ192mm
|
| Weight (kg) |
0.15
|
| Lighting Technology Used |
LED
|
| Mains / Non-Mains (MLS/NMLS) |
MLS
|
| Connected Light source (Y/N) |
N
|
| Anti-Glare Shield (Y/N) |
N
|
| Useful Luminous Flux (lm) |
2400 (2210, 2210)
|
| On-Mode Power (Pon) (W) |
18
|
| Standby Power (Psb) (W) |
0
|
| CRI |
82
|
| CRI (min) |
80
|
| CRI (max) |
84
|
| Height (mm) |
33
|
| Width (mm) |
192
|
| Depth (mm) |
192
|
| Equivalent Power (W) |
N/A
|
| Beam Angle (DLS) |
N/A
|
| Beam Angle (min)(DLS) |
N/A
|
| Beam Angle (max) (DLS) |
N/A
|
| R9 CRI (LED/OLED) |
32 (9, 11)
|
| Survival Factor (x.xx) |
0.9
|
| Displacement Factor |
0.94
|
| Energy Efficiency Class |
E
|
| Voltage |
220-240Vac 50/60Hz
|
| Product Range |
LED Commerical Lamp
|
| Product Name |
DD Standard
|
| Product Warranty |
5 Years
|
| On-Site Warranty |
3 Years
|
Description

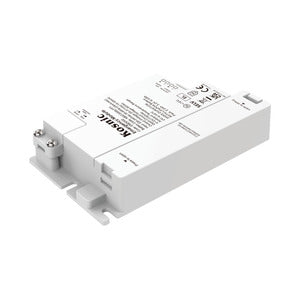

• Compatible with Kosnic LED DD lamps for maintained or non-maintained emergency lighting
• Automatic Self-Test (AST) technology conforming to EN 62034
• Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13
• Voltage change-over threshold according to EN 60598-2-22
• 3 hours rated duration
• LiFePO4 battery – improved battery lifespan allowing frequent partial discharge without capacity reduction
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Constant current output
• Charging status LED built into DD lamp
• For built-in use
• Supplied with internal battery and all necessary leads and connectors
