Wattage:
Voltage:
EAN:
Manufacturer:

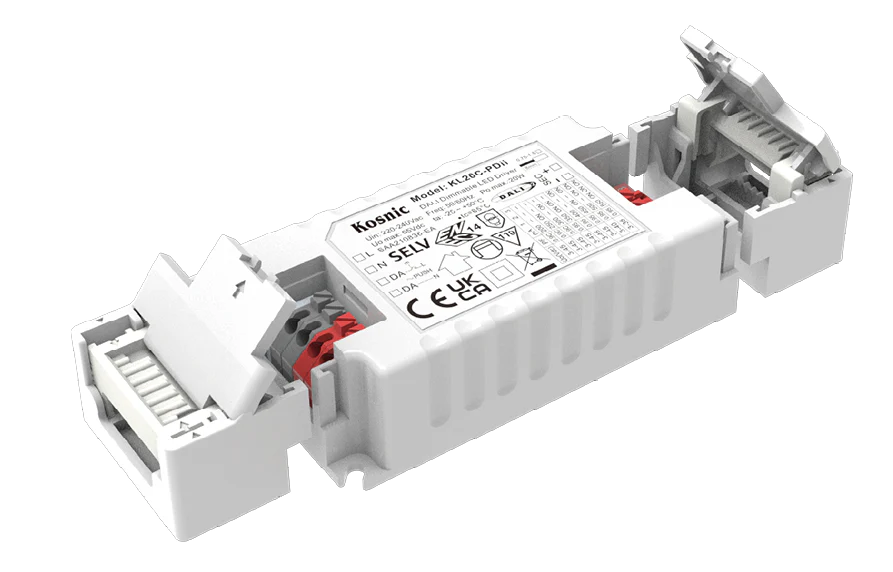

Product Code: DRC20/DA
- Multiple constant current output selections (200-550mA)
- DALI 2 dimmable, Primary PUSH retractive switch dimmable
- Push-fit terminals
- Flicker-free
- Synchronisation function for up to 20 drivers
- Output overload protection with automatic restart
- Output short-circuit shutdown with automatic restart
- Overheating protection
- Class II IP20 independent driver
- SELV equivalent
Product Description
Kosnic's constant current dimmable LED drivers are multifunctional with the option to have DALI/1-10V and primary PUSH retractive switch dimming. With multiple constant current output selections the dimmable driver is suitable for a variety of products.
Technical Summary
-
Dimensions (mm)
116x40.5x22
-
Max load (W)
23
-
Dimming mode
"DALI 2 (300m max), 1-10V(0-10v) (20m max), Primary PUSH (20m max)"
-
Driver Input Connection
Push-fit terminals 0.75-1.5mm2
-
Driver Inrush Current
15
-
Driver Maximum Power (W)
20
-
Driver Output Connection
Push-fit terminals 0.75-1.5mm2
-
Driver Output Voltage (Vdc)
3-45
