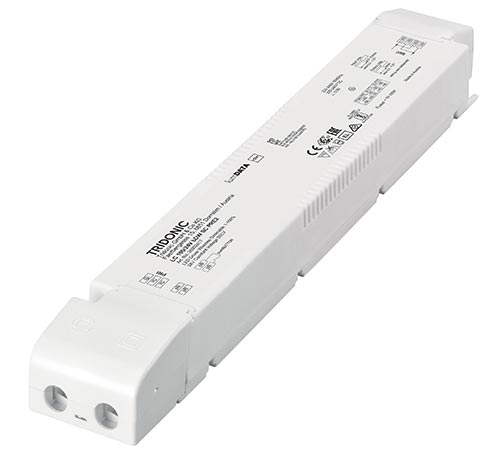

Driver LC 100W 24V bDW SC PRE2

premium series 24 V – dimmable (IP20)

•
•
•
•

  With strain-relief

Product description

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• basicDIM Wireless enables different dimming options
• Forms automatically a wireless communication network with up to 250 nodes
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

• 24 V, 100 W

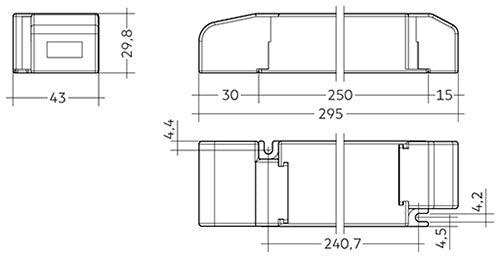

• Small design (295 x 43 x 30 mm) with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring
• Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

• basicDIM Wireless
• ready2mains (configuration via mains)
• Terminal blocks: 45° push terminals

System solution

• Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
• Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
• In connection with Flex accessories wire to PCB plug
• Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
