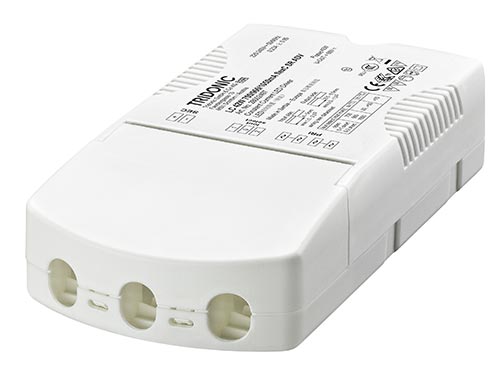

Driver LC 42W 700/900/1050mA flexC SR ADV advanced series 28002497

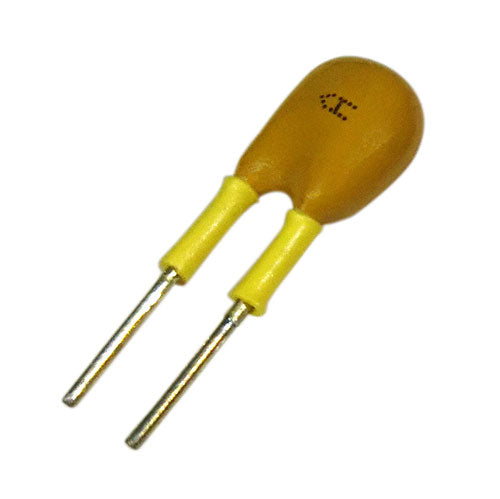

Please select the MA rating you will be running it at and we will include the correct resistor

Product description

• Independent fixed output LED driver
• For luminaires of protection class I and protection class II
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e
• Adjustable output current between 700, 900 and 1,050 mA
• Max. output power 42 W
• Up to 88 % efficiency
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20

Interfaces

• Input terminals: 0° screw terminals
• Output terminals: 45° push terminals

Functions

• Overload protection
• Short-circuit protection
• No-load protection
• Overtemperature protection
• Burst protection voltage 1 kV
• Burst protection voltage 1 kV (L to N)
• Surge protection voltage 2 kV (L/N to earth)

Typical applications

• For spot light and downlight in retail and hospitality applications
• For panel light and area light in office and education application
