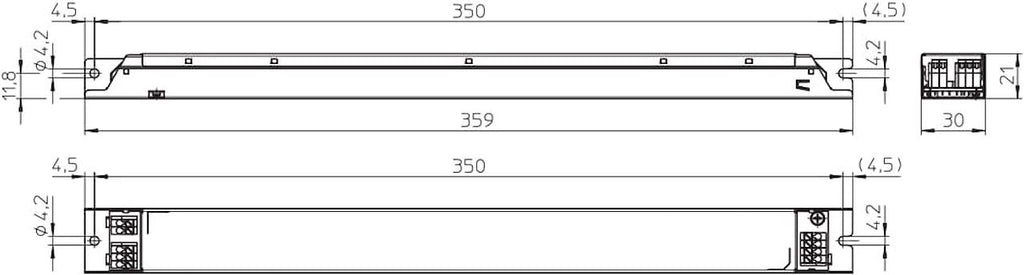

ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I Packaging units Ref. No. Packaging unit Pieces Boxes Weight per box per pallet g 186443 20 48 250 186444 20 48 227 186486 20 48 250 186487 20 48 250 186488 20 48 250 186491 20 48 250 186492 20 48 250 186737 20 48 235 Applied standards • EN 61347-1 • EN 61347-2-13 • EN 61547 • EN 61000-3-2 • EN 62384 • EN 55015 Dimensions • Casing: M10 • Length: 359 mm • Width: 30 mm • Height: 21 mm Product guarantee • 5 years • The conditions for the Product Guarantee of the Vossloh-Schwabe Group shall apply as published on our homepage (www.vossloh-schwabe.com). We will be happy to send you these conditions
ECXe 700.147 186443 220–240 400–370 30 / 285 350 120–225 < 16 > 94 < 1 84 420–390 500 80–170 > 93 420–390 700 60–120 > 92
