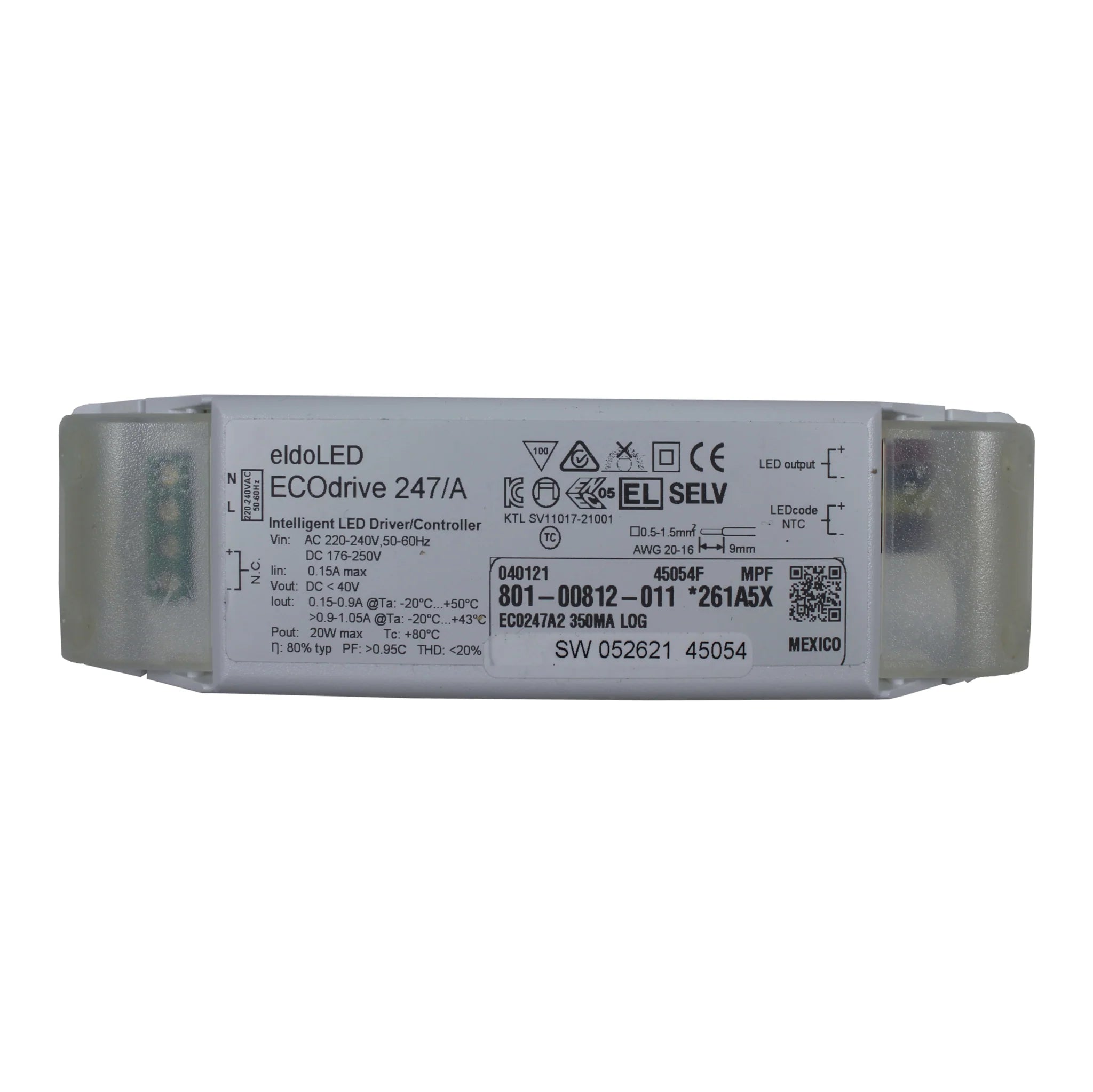

eldoLED ECOdrive 247/A2 - 20w constant current LED driver

Defaults to 350Ma please call 01462 499117 if you want it programmed to a different MA

ECOdrive 247/A2 delivers 20W and is LEDcode compatible. As all ECOdrives, the 247/A2 smoothly dims down to 1%.

The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

 Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture
• Reduce inventory and decrease lead times with configurable drivers
• Short lead times, designed to meet the most aggressive timelines
• Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 220 - 240V (ENEC)
Absolute input voltage range AC: 198 - 264V
Nominal input voltage range DC: 176 - 250V
Maximum input current: 0.15A @ 230V / 50Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 20W
Number of LED outputs: 1
Programmable LED output current range: 150 - 1050mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed
LED output current
LED output voltage range: 2 - 40V
