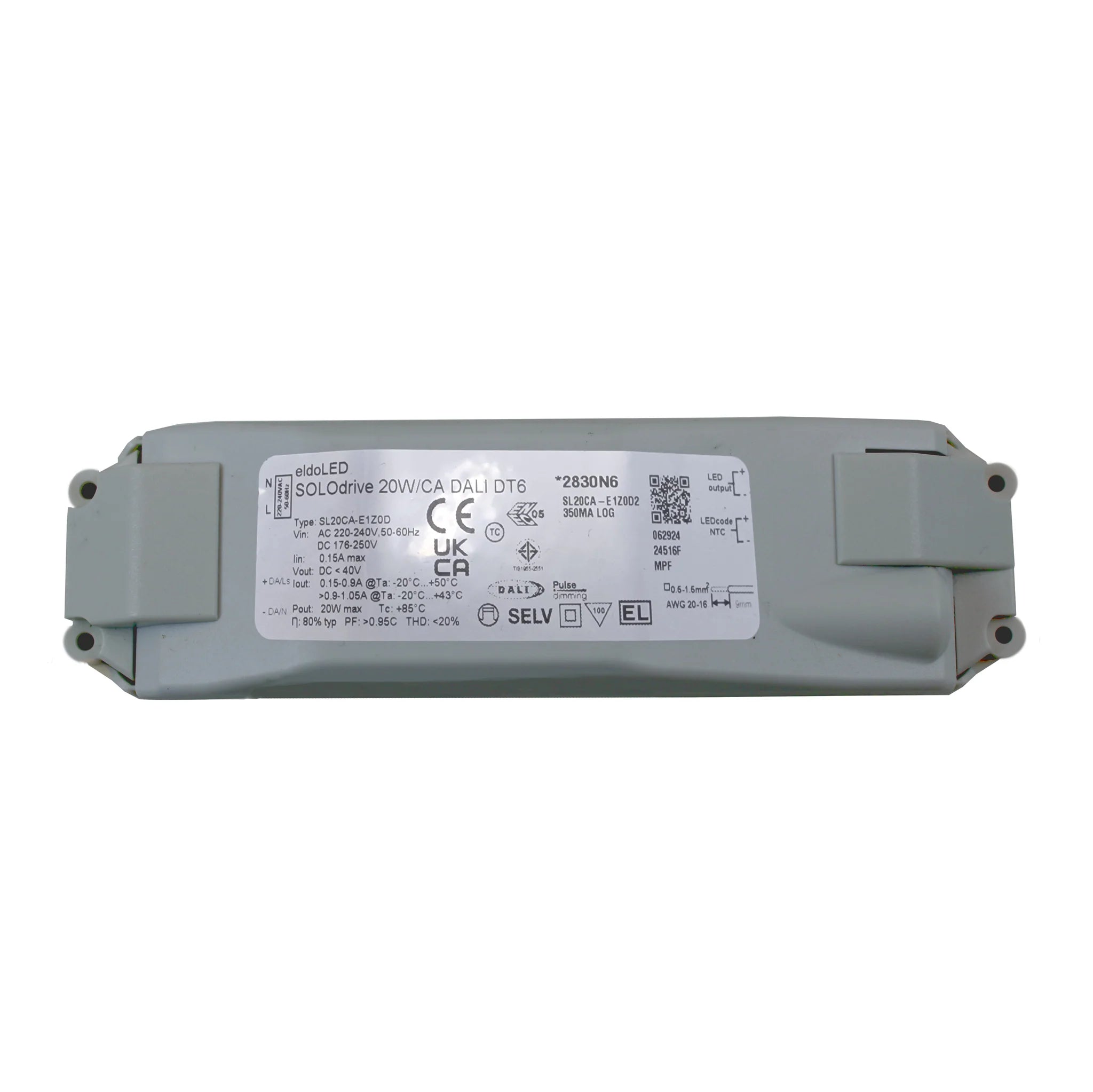

eldoLED SOLOdrive 20CA-E1Z0D2 - 20w DALI dimmable constant current LED driver

This products defaults to  350Ma , However it can be programmed to run anywhere between  150ma and  1050MA . Cost includes programming to the Ma required please email after purchase to advise the MA you require this to be programmed to. Alternatively WE will call before ordering to confirm

As standard the SOLOdrive product will be sent out pre-configured for 350mA current.  The current is settable at any interval between 150mA and 1050mA.

SOLOdrive 20CA-E1Z0D2 delivers 20W and is DALI-2 certified. As all SOLOdrives, the 20CA-E1Z0D2 smoothly dims all the way down to dark.

The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 45mm diameter hole in the ceiling into a plenum with a 100mm height between functional and decorative ceiling.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture
• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture
• Reduce inventory and decrease lead times with configurable drivers
• Short lead times, designed to meet the most aggressive timelines
• Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 220 - 240V (ENEC)
Absolute input voltage range AC: 198 - 264V
Nominal input voltage range DC: 176 - 250V
Maximum input current: 0.15A @ 230V
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 20W
Number of LED outputs: 1
Programmable LED output current range: 150 - 1050mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 40V
