As standard the SOLOdrive product will be sent out pre-configured for 350mA current. The current is settable at any interval between 150mA and 1400mA. We will call to ask you what you want it programmed to

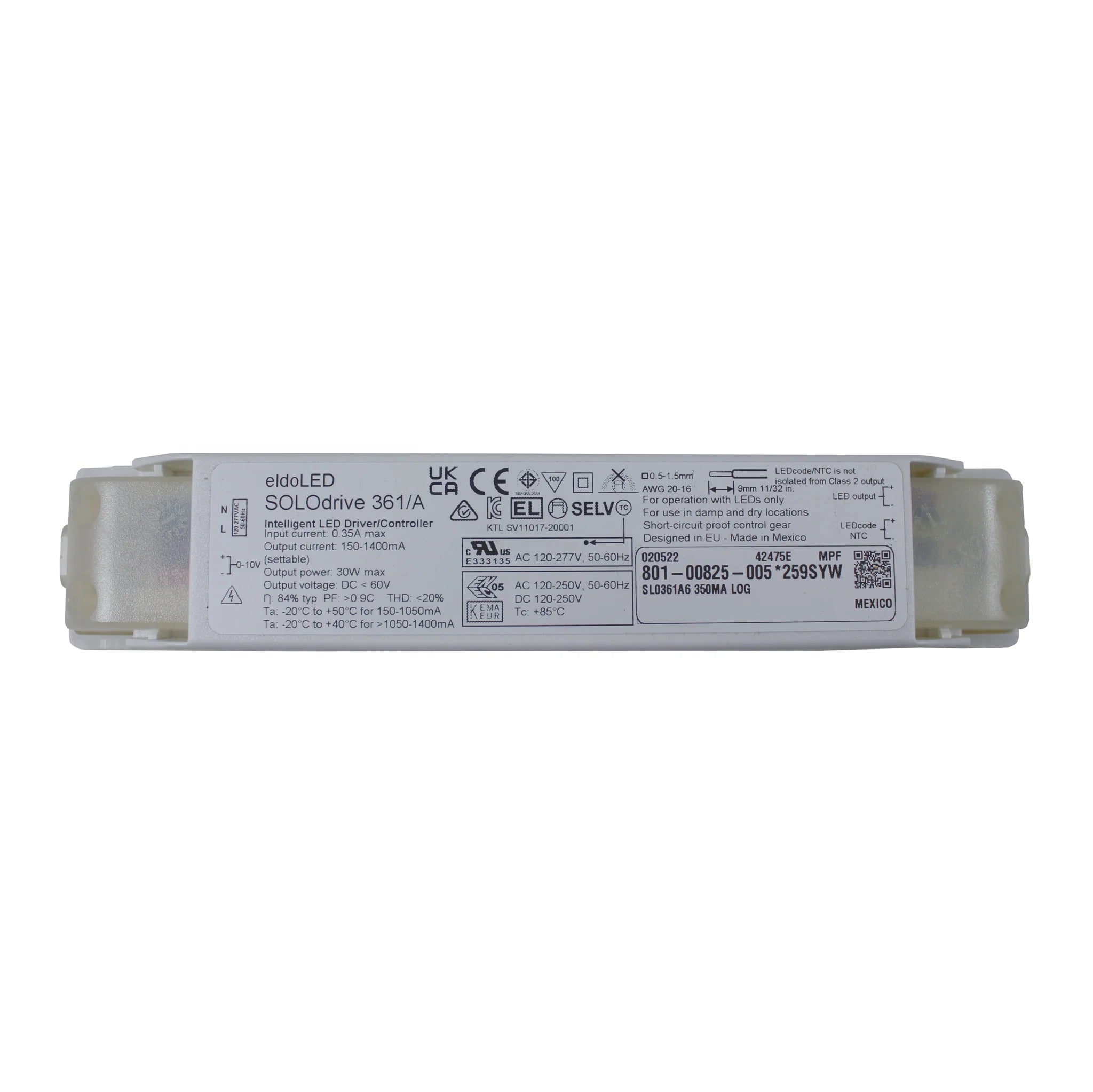

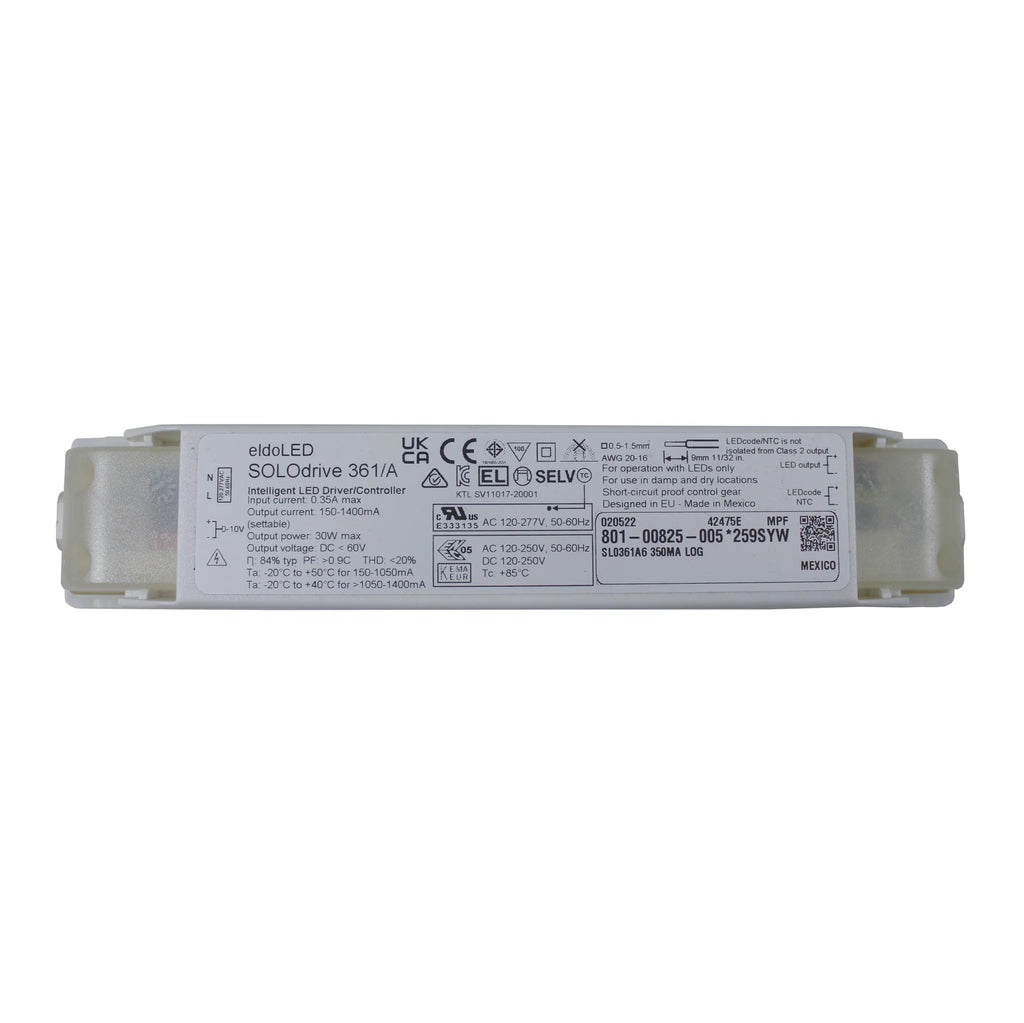

SOLOdrive 361/A6 delivers 30W and is 0-10V compatible. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all SOLOdrives, the 361/A6 smoothly dims all the way down to dark.
Features
- Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
- LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
- NTC interface for robust thermal management
Benefits
- Industry-best dimming performance for your fixture/application
Input Characteristics
Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.35A @ 120V / 60Hz
Input frequency range: 50 - 60Hz
Output Characteristics
Maximum LED output power: 30W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V
