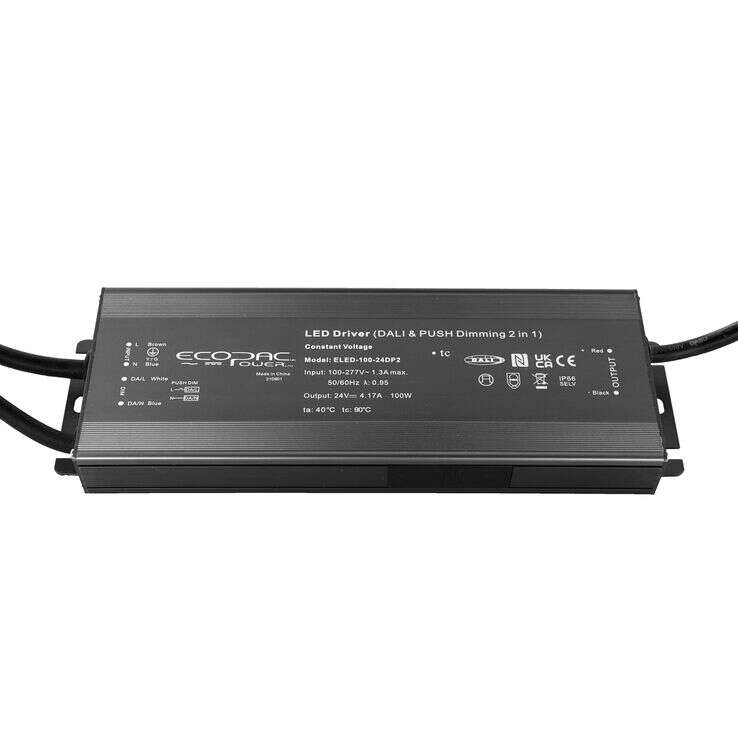

ELED-100-DP2 Series Features:
Features:
• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 89%
• Protections: Short circuit/ Over load/
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting
| ELED-100-12DP2 |
ELED-100-24DP2 |
| Wattage |
100 |
100 |
| Input Voltage |
100~277VAC |
100~277VAC |
| Output Current |
8.34 |
4.17 |
| Output Voltage |
12 |
24 |
| Dimensions |
231x 78 x 25.1 mm |
231x 78 x 25.1 mm |
| Working Temperature |
-40~60°C |
| Safety Standards |
EN61347-1, EN61347-2-13, EN62493, IP66 |
| EMC Standards |
Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) |
