Description

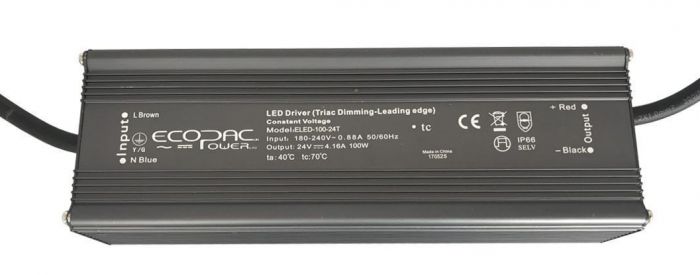

The Ecopac ELED-100P-24T constant voltage LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and trailing edge Triac dimmers.
Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-100P-24T highly reliable.
Constant Voltage Design 24V Output
Dimmable using leading edge & trailing edge Triac Dimmers
PWM Output
3 Years warranty
Protections: Short circuit/ Over loading/ Over current/ Over temperature
Efficiency up to 85%
Cooling by free air convection
IP66 design
Suitable for LED lighting and moving sign applications More Information
Manufacturer
Ecopac Power
Output Wattage (W)
100
Output Voltage
24V
Dimmable (Type)
Triac Leading edge & Trailing edge
Dimensions
230x70x46mm
EMC Standards
EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3
Input Voltage
180-264VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-100P-T.pdf
