Wattage:150
Voltage: 24V
EAN:
Manufacturer: Ecopac Power

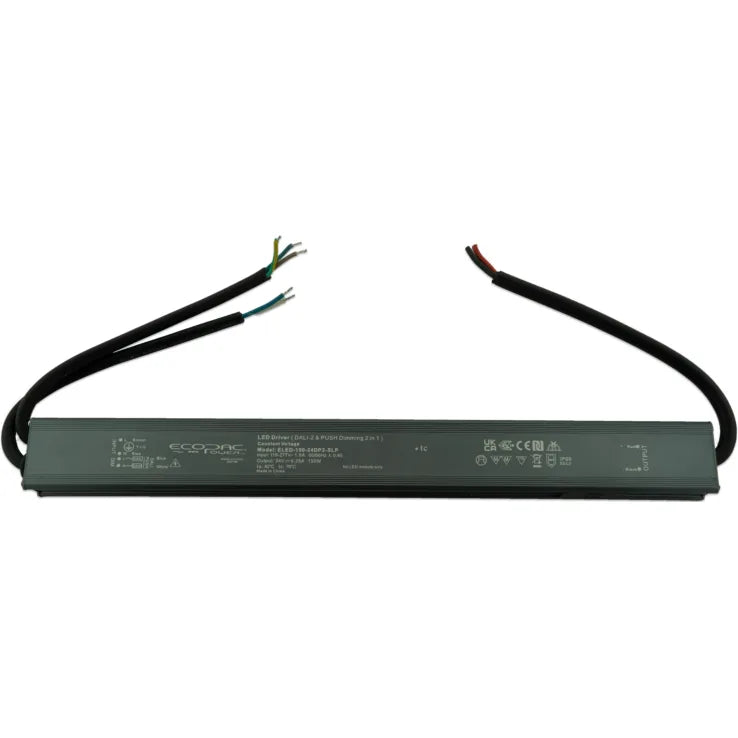

The Ecopac Power ELED-150-24DP2-SLP is a 150W 24V constant voltage LED driver with DALI 2 and push dimming, in a slimline housing.
- Constant voltage / PWM output (NFC regulation)
- DALI 2 and push dimming, 0-100%
- AC input 100-277VAC with built-in active PFC
- Protections: short circuit, overload, over temperature
- Cooling by free air convection
- IP66 design for indoor and outdoor installation
- 5 year warranty
| Wattage | 150W |
| Input Voltage | 100-277VAC |
| Output Current | 6.25A |
| Output Voltage | 24V (adjustable by NFC) |
| Dimensions | 377.2 x 38.5 x 23.6 mm |
| Ingress Protection | IP66 |
| Working Temperature | -40 to +60°C (refer to derating curve) |
| Safety Standards | EN61347-1, EN61347-2-13 |
