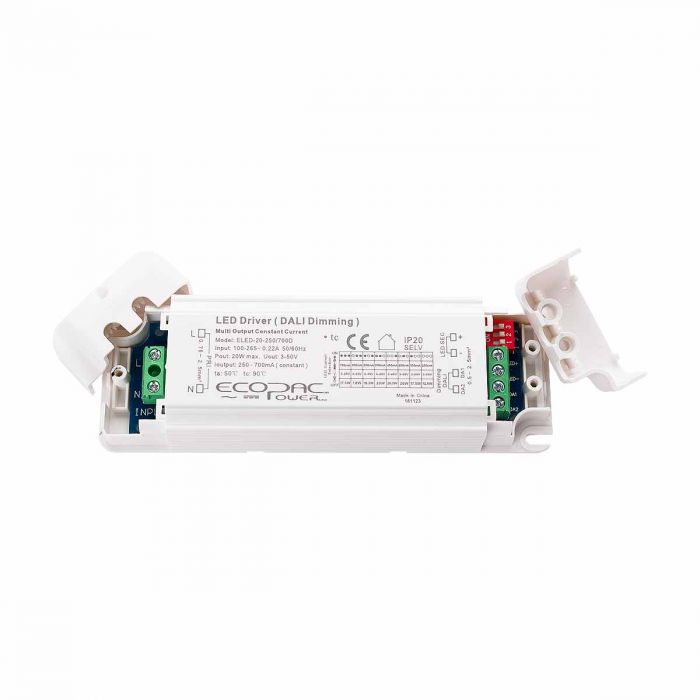

Description
Constant Current mode output with selectable levels 250mA - 700mA via by dip switchs
DALI dimming function
Other features:
AC input: 100-265VAC
Built-in active PFC function
Efficiency up to 86%
Protections: Short Circuit/Over load/Over temperature
IP20 design for indoor installation
Cooling by free air convection
Suitable for LED lighting and moving signs More Information
Manufacturer
Ecopac Power
Output Wattage (W)
7
Output Current
700mA
Dimmable (Type)
DALI
Dimensions
140*45*28mm
EMC Standards
Compliance toEN55015,EN61000-3-2,3 (?50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level ?surge4KV?
Input Voltage
100-265Vac
Safety Standards
EN61347-1 EN61347-2-13 IP20
Output Voltage Options
Single
Working Temperature
-40 ~ +60°C
PDF Datasheet
ELED-20-250700D.pdf
