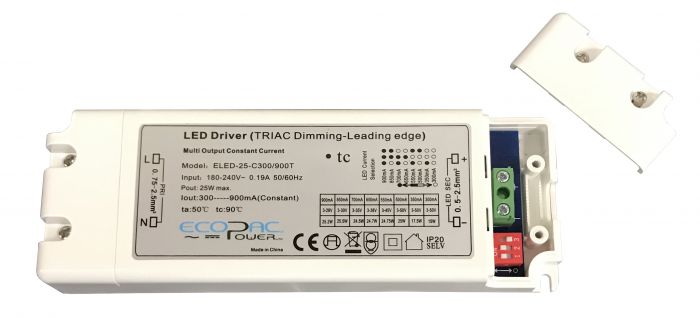

Description
Constant current mode output
Multiple levels selectable by dip switch
Protections: Short circuit/ Over load/ Over Current
Other features:
Full protection housing east installation
IP20 design for indoor installation
Cooling by free air convection
Dimming function : Triac dimmable phase cut dimmable
3 years warranty More Information
Manufacturer
Ecopac Power
Output Wattage (W)
25
Output Current
Choose Option
Dimmable (Type)
Triac Leading edge & Trailing edge
DC Output Adjustment
300-900mA
Dimensions
155x 54x 20
EMC Standards
Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV )
Input Voltage
180-240VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
Tcase= -40~+60°C
PDF Datasheet
ELED-25-CT.pdf
