Wattage:60
Voltage: 24V
EAN:
Manufacturer: Ecopac Power

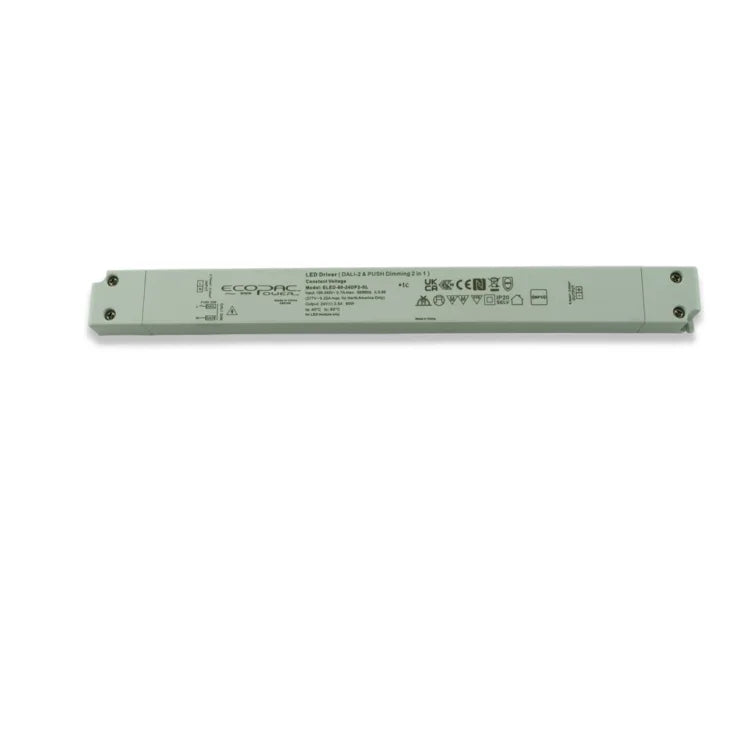

The Ecopac Power ELED-60-24DP2SL is a 60W 24V constant voltage LED driver with DALI 2 and push dimming, for indoor installation.
- Constant voltage / PWM output (NFC regulation)
- DALI 2 and push dimming, 0-100%
- AC input 100-277VAC with built-in active PFC
- Protections: short circuit, overload, over temperature
- Cooling by free air convection
- IP20 design for indoor installation
- 5 year warranty
| Wattage | 60W |
| Input Voltage | 100-277VAC |
| Output Current | 2.5A |
| Output Voltage | 24V (adjustable by NFC) |
| Dimensions | 192.5 x 62 x 24 mm |
| Ingress Protection | IP20 |
| Working Temperature | -40 to +60°C (refer to derating curve) |
| Safety Standards | EN61347-1, EN61347-2-13 |
