Wattage:
Voltage:
EAN:
Manufacturer:
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit/ Over Voltage/ Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Metal housing design
5 years warranty

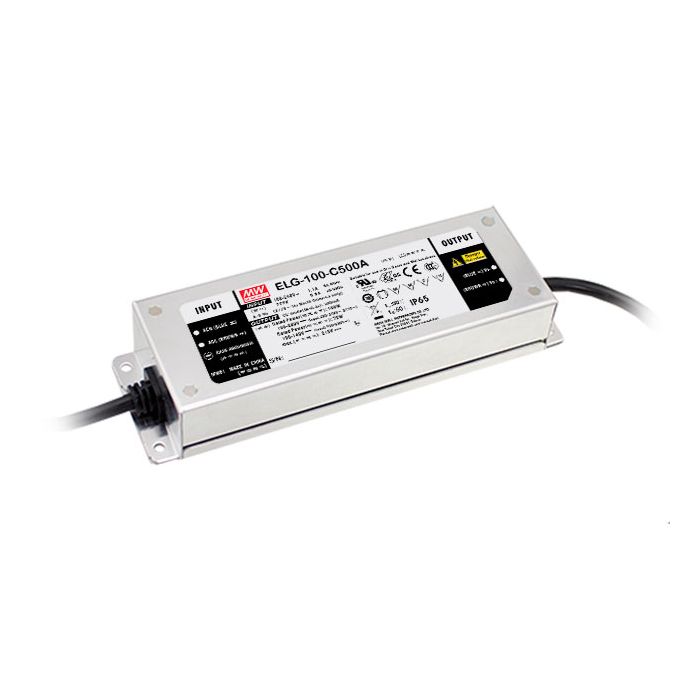

More Information Manufacturer Mean Well Output Wattage (W) 100 Output Current 1050mA Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 48~95 DC Output Adjustment 525-1050mA (A type only) Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+90°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet elg-100.pdf
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Current 1050mA Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 48~95 DC Output Adjustment 525-1050mA (A type only) Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+90°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet elg-100.pdf
