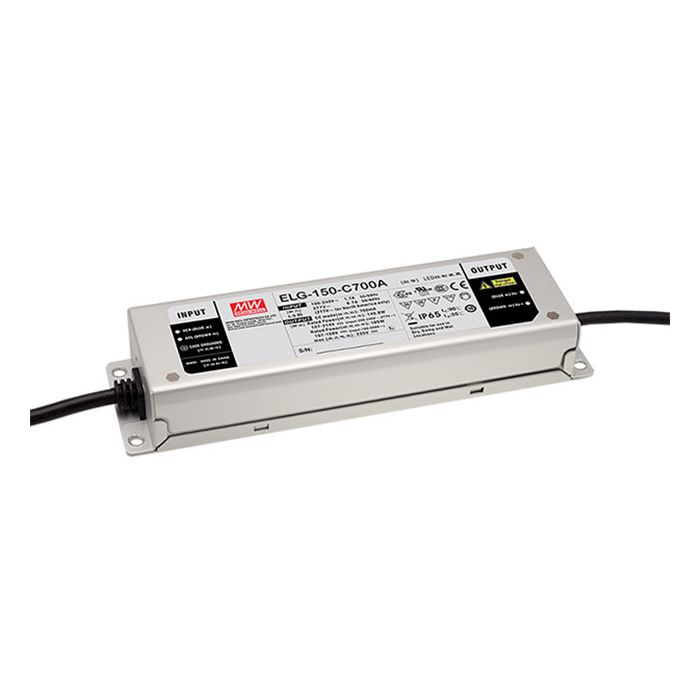

ELG-150-C1050 - Mean Well LED Driver ELG-150-C1050 150.1W 1050mA

Constant current mode outputTypical lifetime>50000 hoursProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsMetal housing design3 in 1 dimming5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Current 1050mA Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 72~143 DC Output Adjustment 525-1050mA (A type only) Dimensions 219x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet elg-100.pdf
