Wattage:
Voltage:
EAN:
Manufacturer:
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit/ Over Voltage/ Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Metal housing design
Various Dimming options
5 years warranty

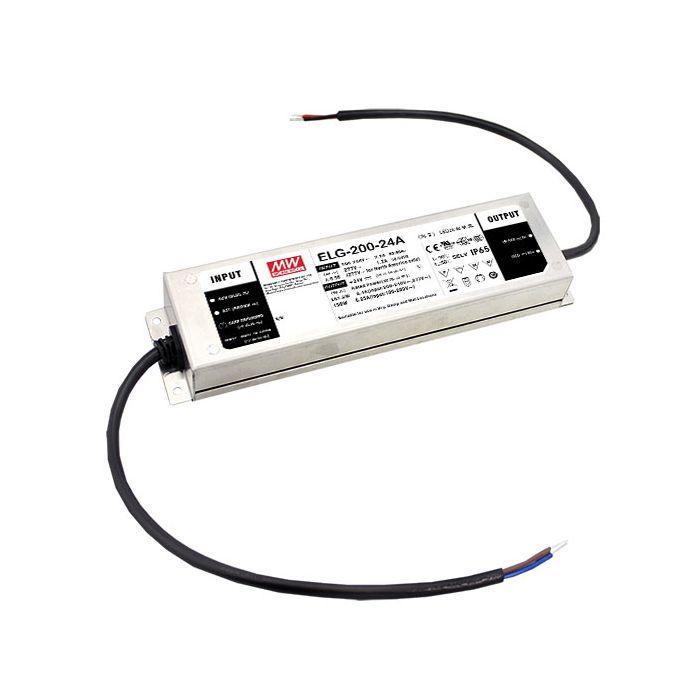

More Information Manufacturer Mean Well Output Wattage (W) 200 Output Voltage 12V Dimmable (Type) DALI DC Output Adjustment None Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1; IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90°C PDF Datasheet ELG-200-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 200 Output Voltage 12V Dimmable (Type) DALI DC Output Adjustment None Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1; IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90°C PDF Datasheet ELG-200-spec.pdf
