Wattage:
Voltage:
EAN:
Manufacturer:
Constant current mode output Metal housing design
Protections: Short circuit / Over Voltage / Over temperature
Other features: Built-in active PFC function No load power consumption <0.5W IP67 / IP65 rated design for indoor or outdoor installations
Typical lifetime>50000 hours
5 years warranty
More Information:

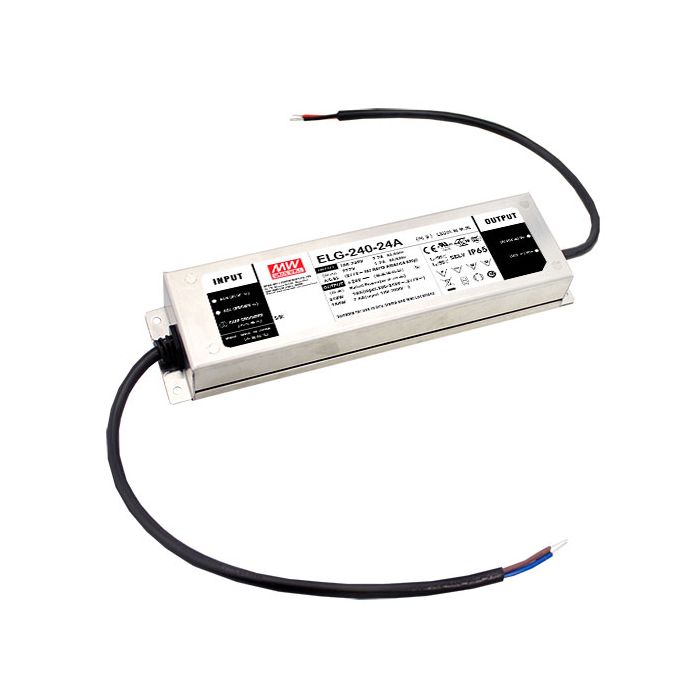

Manufacturer: Mean Well
Output Wattage (W): 240
Output Voltage: 24V
Dimmable (Type) 3 in 1 Dimming
DC Output Adjustment 22.4-25.6V(A type only)
Dimensions: 244x 71x 37.5
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743
Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
Input Voltage: 100-305VAC 142-431VDC
Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1;
IP65 or IP67 approved
Output Voltage Options: Single
Working Temperature: -40~+90°C
