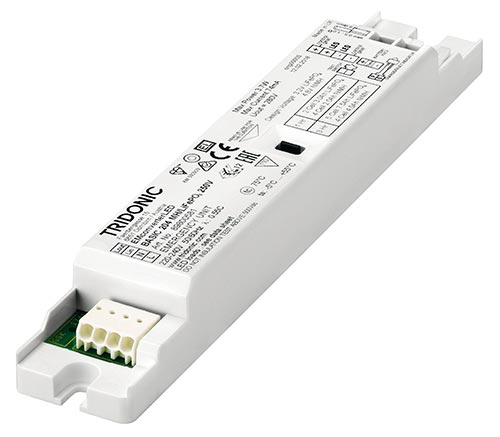

EM converterLED BASIC MH/LiFePO4 90 V

BASIC version

•
•
•

  Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

Product description

• Self contained emergency lighting LED driver for manual testing
• For LED modules with a forward voltage of 40 – 97 V
• SELV for output voltage < 120 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Properties

• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole connector
• Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)

Batteries

• High-temperature cells
• NiMH or LiFePO4 batteries
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1 years guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO4 batteries
• 3 years guarantee for LiFePO4 batteries
• For battery compatibility refer to datasheet, battery selection
