Wattage:
Voltage:
EAN:
Manufacturer:
ERM/2/MinEM – Emergency LED Strip
Features:
• Extra Long Life LiFePO4 Batteries
• Suitable for Mounting To Gear-tray
• Deep Discharge Protection
• Load Emitting 160 Lumen
• Non-Maintained Operation
• Features Battery Temperature Protection
• Connecting Lead Available as an Accessory
Description:
The 3-hour emergency lighting driver operates the LED strip at 250mA which provides 160 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.
This product is suitable for mounting to a gear-tray adjacent to the light source, mitigating the risk of LEDs being mis-replaced and causing non-compatibility with existing emergency packs.
The charger will cut off if the battery temperature falls below 0°C or above 55°C. The product will however operate when required in emergency mode, provided sufficient battery capacity remains.
Technical Details:
- Mains Supply: 230–240V AC, 50/60Hz
- Power Rating (Charging): 1.7W, 15mA, λ = 0.47
- Power Rating (Charged): 0.6W, 10mA, λ = 0.26
- Lumen Output: 160lm
- Duration: 3 Hours
- Battery Type: 6.4V 0.6Ah LiFePO4
- Charge Current: 50mA nominal
- Battery Operating Temperature: 5°C to 55°C
- Maximum Module Temperature: Ta = 50°C, Tc = 70°C
- Weight: 0.085kg
- Battery Discharge Current: 150mA nominal
- Recharge Period: 24 Hours
- Discharge Voltage Cut-Off: 5.3V
- Ingress Protection: IP20
- Module Dimensions: 104mm x 29.5mm x 20mm
- Battery Dimensions: 63mm x 30mm x 16mm
- LED Strip Dimensions: 46mm x 14mm

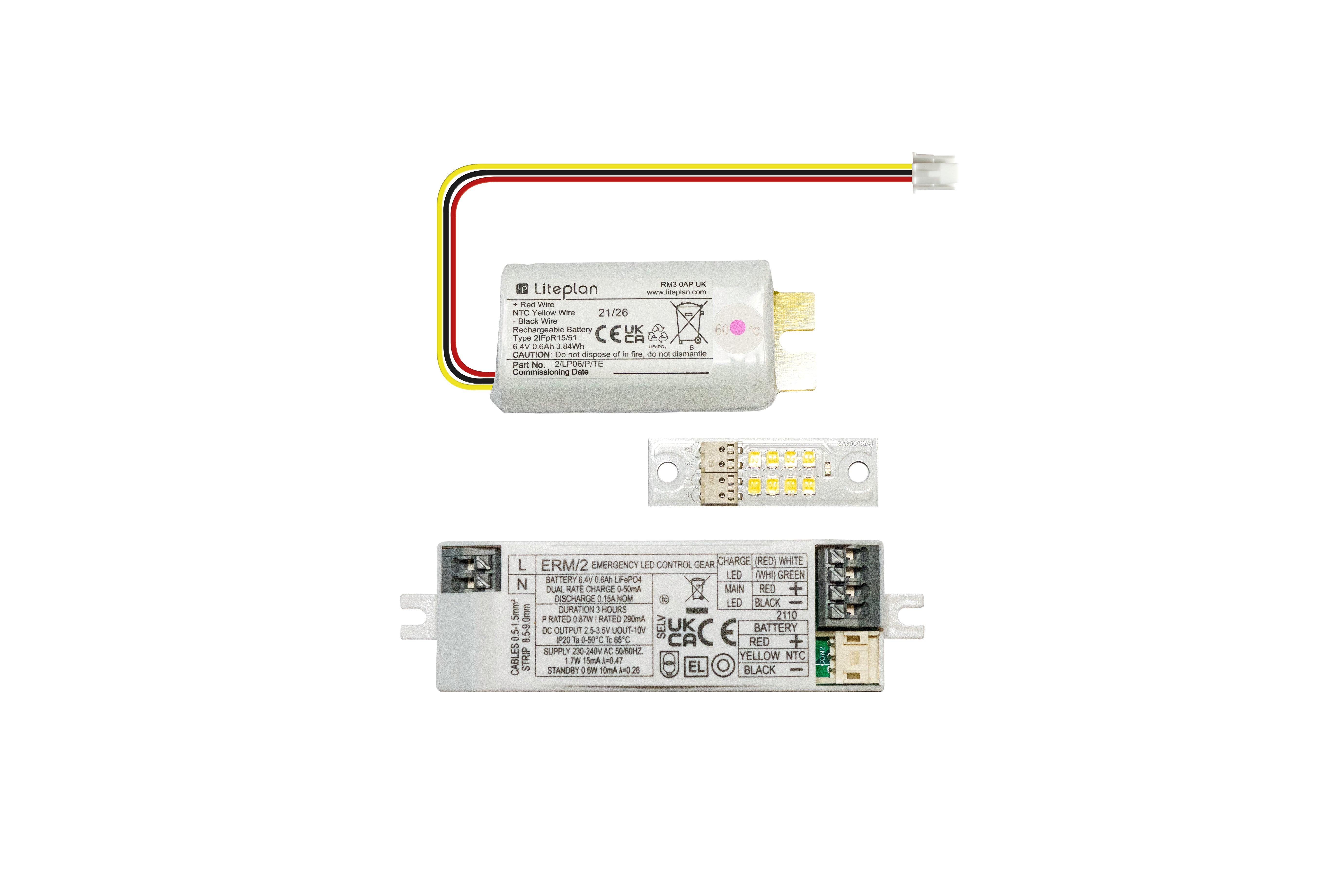

The ERM/2/MinEM is supplied as a complete non-maintained emergency driver and LED strip for integral mounting within a luminaire.
