75W 24VDC 3.1A*1ch CV DALI Driver
- Model: EUP75D-1H24V-0
- Input Voltage: 220~240VAC
- Output Power: 75W
- Output Voltage: 24VDC
- Output Current: 3.1A
- Output Channel: 1

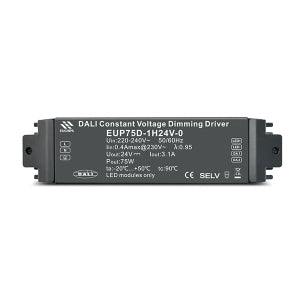

75W 24VDC DALI Constant Voltage Dimmable Driver EUP75D-1H24V-0
EUP75D-1H24V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC 62386. This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Feature
1. Single channel constant voltage, 3.1A Max
2. Meet DALI Protocol IEC62386
3. Support Touch DIM function
4. High input voltage of 220VAC ~ 240VAC
5. Over load protection; over voltage protection; short circuit; over temperature
6. IP20, suitable for indoor LED lighting application
Technical Parameter
| Model | EUP75D-1H24V-0 | |
| Input | Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| Inrush Current(max) | Cold start 45A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 3.1A/24VDC/74.4W |
| R & N (Max) | 240mVp-p | |
| Channel | 1 | |
| Current Tolerance | ±3% | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming / Touch DIM |
| Dimming Range | 1%-100% Dimming to off | |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over temperature | Shut down and auto-restart after normal temperature | |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
| Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 460g±5%/PCS; 20PCS/Carton;10.5kg±5%/Carton; Carton Size: 244*223*199mm(L*W*H) | |
| Dimension | 213*54*33mm（L*W*H） | |
