Description

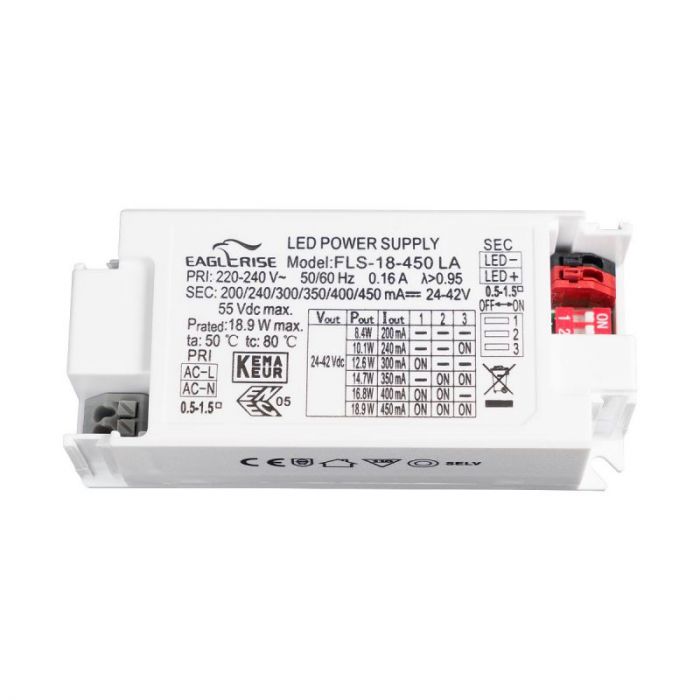

The Eaglerise FLS-18-450 LA Constant Current LED Driver features selectable output current between 200mA and 450mA via dip switches.
Built in protection against short circuit / over load & over voltage
IP20 rated
Power factor ?0.9
Efficiency ?81%
Class II, SELV
5 year warranty
Compact design 97 x 43 x 30 mm More Information
Manufacturer
Eaglerise
Output Wattage (W)
18
Output Current
Selectable
Dimmable (Type)
No
Output Voltage Range (V)
24-42VDC
Dimensions
97 x 43 x 30 mm
EMC Standards
EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage
220-240VAC
Safety Standards
EN 61347-1; EN61347-2-13
Output Voltage Options
Single
Working Temperature
0C - +50C
PDF Datasheet
FLS-18-450 LA.pdf
