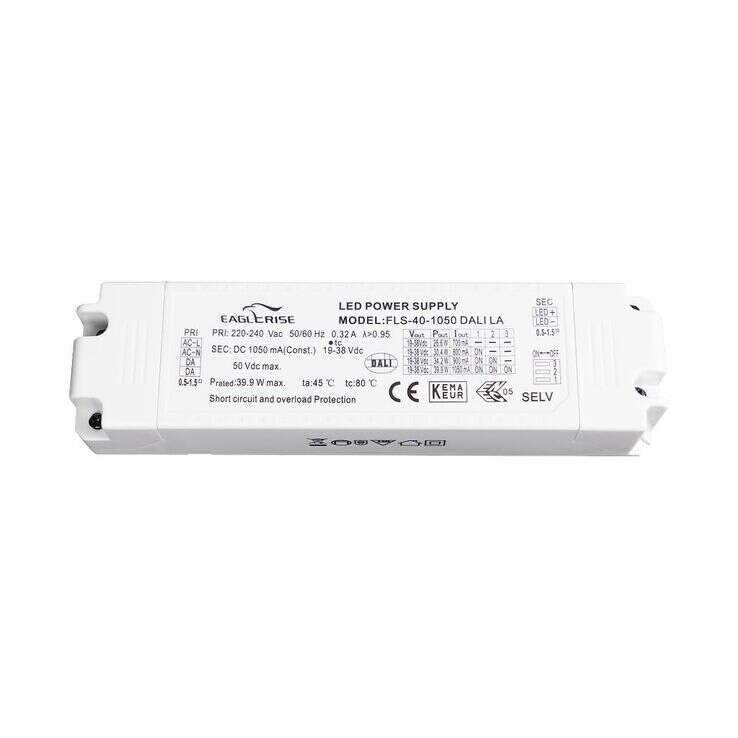

FLS-40-1050 Non Dim /1-10V/ Dali please select

Full Spec

https://www.eaglerise.com/uploadfile/2018/1122/20181122104753990.pdf

■Features  Class II，SELV，independent  Input Voltage 220-240VAC  Protections: SCP/OLP/OVP  Power Factor ＞0.95  Efficiency ≥85%  Support 0-10V Dimming  5 years warranty ■Applications  Down light  LED panel light ■Description FLS-40-1050 0-10 LA is a 40W constant current LED driver that operates from 176-264Vac input with 850 to 1050mA output current and a forward voltage range from 12 to 45Vdc. The output current is selectable by DIP Switch. With it’s compact dimensions from 170 x 45 x 30mm it is easy to integrate in LED Panel and down light products. To ensure trouble-free operation, protection is provided against output short circuit and over Load.

■Specification Input Rated input voltage 220-240VAC Range of input voltage 176-264VAC DC voltage range 176-280V Frequency(Hz) 0/50/60 Hz Power Factor ＞0.95@220-240VAC, full load Input Current max 0.32A MAX. @Full Load,176VAC Start-up time ＜0.5S Unload Power Consumption ≤0.5W Inrush Current 20A Max. THD 10% Typ. Leakage Current ＜0.5mA(240VAC) Output Constant Current Max. 1050mA Unload voltage Max. 55 VDC Voltage Range(VDC) 12-45VDC Rated power 40.4W Max. Current Accuracy ±5% Voltage Regulation ±5% @Full Load Load Regulation ≤5% Hold-up Time 1s max.@Full Load Ripple& Noise *Note.2 ≤100mAp-p@Full Load,240VAC Efficiency(Typ.) ≥85% Dimming Dimmable YES Dimming mode 1-10V Dimming current range 5%~100% Protection Over Load Protection 103-120% Protection type: Auto Resume Over Voltage Protection ＞55VDC Protection type: Auto Resume Short circuit Protection Protection type: Auto Resume Over Temperature protection NA Environment Operating Temperature -20℃…+45℃ tc 90℃ Storage Temperature -25℃…+60℃ Life time ＞30,000h@45℃ Humidity 20%-95%RH Others Dimension 125X45X27.5(LXWXH)mm Weight 0.165kg/PC Safety & EMC Safety standards EN 61347-1; EN61347-2-13; EN62384 Withstand voltage Input-Output：3750V/5mA/1min Isolation resistance Input-Output：≥4MΩ@500VDC EMI EN55015; EN61000-3-2 Class C; EN61000-3-3 EMS EN 61547; EN 61000-4-2; EN 61000-4-5 —1000V;
