Wattage:
Voltage:
EAN:
Manufacturer:

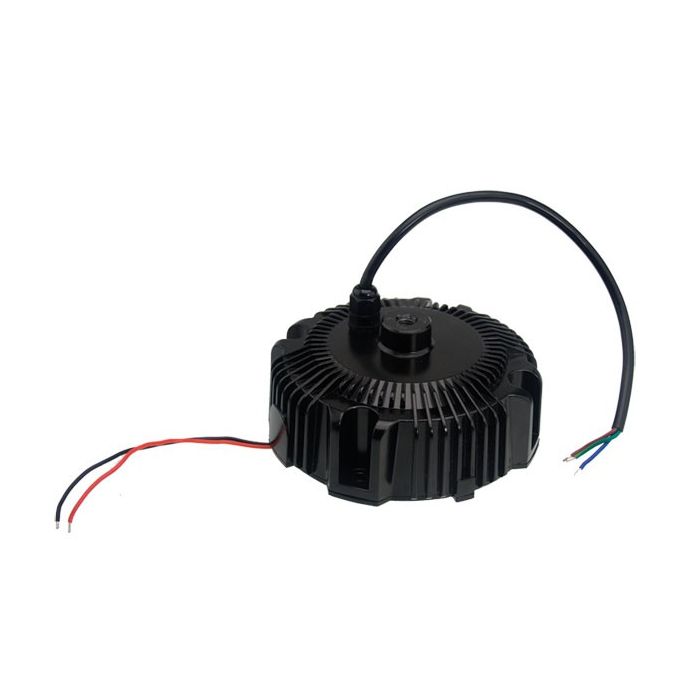

IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeBuilt-in active PFC, PF>0.9 for 60% of load or higherHigh efficiency up to 93.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unit
More Information Manufacturer Mean Well Output Wattage (W) 156 Output Voltage 36V Dimmable (Type) AC phase-cut Dimensions 132x 132x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-160-spec_13.pdf
More Information Manufacturer Mean Well Output Wattage (W) 156 Output Voltage 36V Dimmable (Type) AC phase-cut Dimensions 132x 132x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-160-spec_13.pdf
