Description

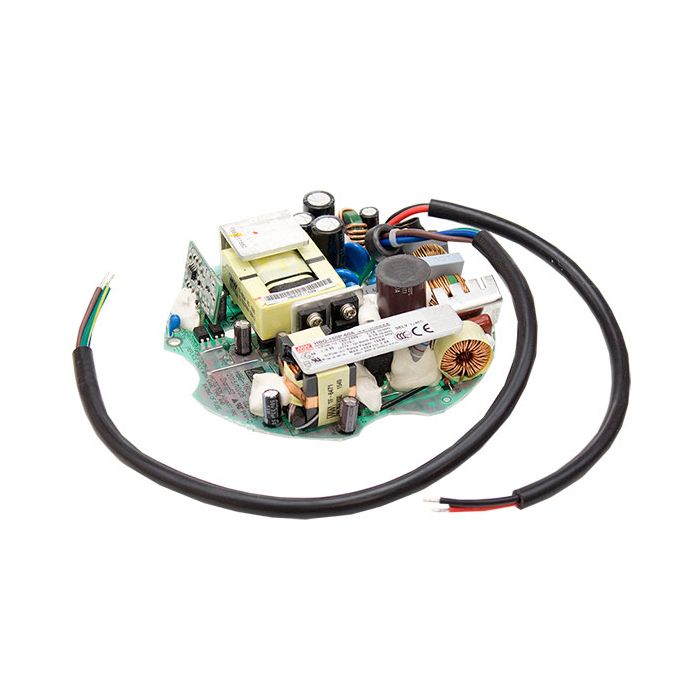

IP65 design for indoor or outdoor installationsBuilt-in active PFC function5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features: Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 93.5%Cooling by free air convectionSuitable for dry, damp and wet locationMeet 4KV surge immunity level (IEC61000-4-5)Suitable for LED lighting and street lighting application Output and C.C level can be adjusted through internal potentiometer More Information
Manufacturer
Mean Well
Output Wattage (W)
156
Output Voltage
60V
Dimensions
132x 132x 66.5
EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
HBG-160-spec_15.pdf
