Wattage:
Voltage:
EAN:
Manufacturer:

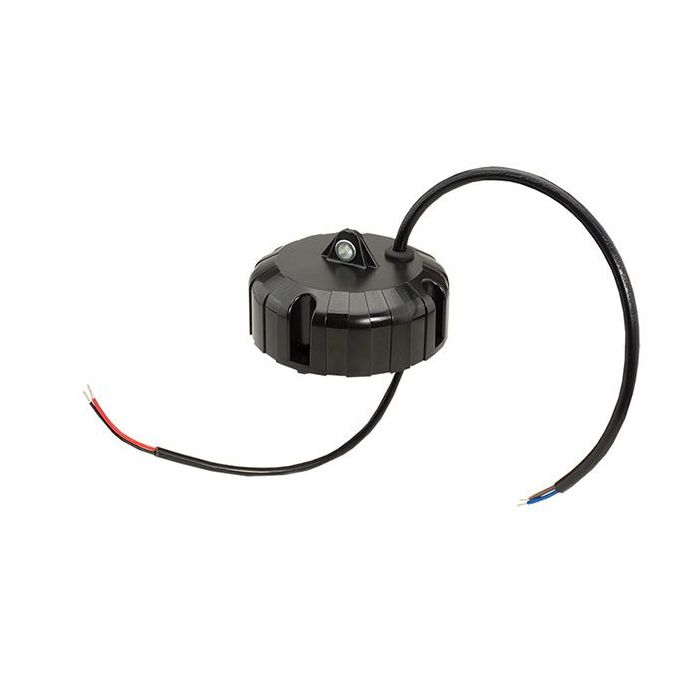

Constant current design5 years warrantyProtections: Short circuit / Over temperatureOther features:Universal AC input / Full range (up to 295VAC)Built-in active PFC function High efficiency up to 91%Cooling by free air convectionFully isolated plastic caseClass II power unit, no FGClass 2 power unitNo load power consumption <0.5W
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Current Choose Option Dimmable (Type) No DC Output Adjustment 37-55V Dimensions 100 x 60.5mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>65% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (Surge 2KV), criteria A Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 No. 250. 13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved Output Voltage Options Single Working Temperature -40°C-+80°C PDF Datasheet HBG-60-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Current Choose Option Dimmable (Type) No DC Output Adjustment 37-55V Dimensions 100 x 60.5mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>65% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (Surge 2KV), criteria A Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 No. 250. 13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved Output Voltage Options Single Working Temperature -40°C-+80°C PDF Datasheet HBG-60-spec.pdf
