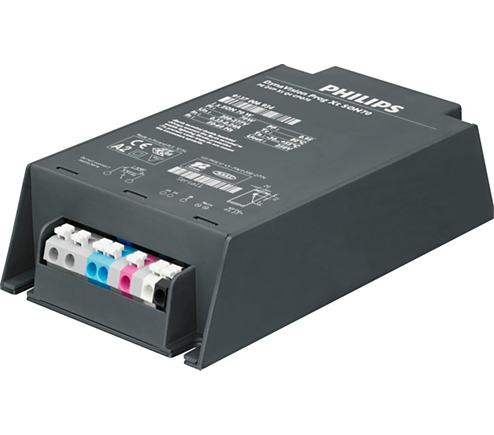

HID-DV PROG Xt 150 SON Q 208-277V 66930200

Specifications

General information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code	-
Type version	-
Lamp type	SON

Number of lamps	1 piece/unit
Suitable for outdoor use	Yes
Number of products on MCB (16 A type B) (nom.)	5
Default lamp selected	SON150
Automatic restart	Yes

Operating and electrical

Input Voltage	208-240-277 V
Input frequency	50 to 60 Hz
Minimum mains voltage operation (min.)	172 V
Operating frequency (nom.)	0.40 kHz
Power factor 100% load (nom.)	0.99
Ignition voltage (max.)	5.0 kV
Ignition switch-off time (max.)	20 min
Mains voltage performance (AC)	188-305V

Mains voltage safety (AC)	160-305V
Earth leakage current (max.)	0.7 mA
Output peak voltage (max.)	250 V
Inrush current width	0.47 ms
Lamp power tolerance	-3%/+3%
Input current (nom.)	0.77 A
Inrush current peak (nom.)	52 A
Efficiency at full load [%]	90.92 %

Wiring

Cable capacity output wires mutual (nom.)	1000 pF
Cable length from device to lamp	10 m
Wire strip length	10.0-11.0 mm

Ballast contact wire cross section	0.50-2.50 mm²
Connector type	WAGO series 804

System characteristics

Rated ballast-lamp power	150 W
System power on CDO	-
Lamp power on CDO	-
Power loss on CDO	-
Rated lamp power on Son	150 W

System power on Son	160 W
Lamp power on Son	147 W
Power loss on Son	13 W
Power loss on Son while dimming	6.5 W

Temperature

T-ambient (max.)	55 °C
T-ambient (min.)	-30 °C
T storage (max.)	55 °C

T storage (min.)	-30 °C
T-case lifetime (nom.)	80 °C
T-case switch off (min.)	92 °C

Controls and dimming

Control interface	PROG
Programmable lamp settings	CPO140/SON150/CDO150
Pre-set integrated controls	Dali
Programmable dimming options	ALO/CLO/Dynadim/Lineswitch/AmpDim

Run-up time before dimming	10 min
Fade-down rate	1.2 %/sec
Fade-up rate	16 %/sec
Regulating level	20%-100%

Mechanical and housing

Housing

Q

Approval and application

Surge protection (common/differential)	EN61547 (L-L 2kV, L-G 4kV), 10kV TIL kV
IP luminaire classification	34
Active temperature protection	Yes
EMI 9 kHz ... 300 MHz	CISPR 15 ed 7.2
EMI 30 MHz ... 1,000 MHz	-
Safety standard	IEC 607, 609, 926, 928  [ No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality standard	ISO 9000:2000

Environmental standard	ISO 14001
Harmonic current emission standard	IEC 61000-3-2
Vibration standard	IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps standard	IEC 68-2-29 Eb (10G/16ms)
Humidity standard	EN 61347-2-12 clause 11
Approval marks	F-Marking CE marking ENEC certificate VDE-EMV certificate
Humming and noise level	< 30 dB(A)

Product data

Full product code	871829166930200
Order product name	HID-DV PROG Xt 150 SON Q 208-277V
EAN/UPC – product	8718291669302
Order code	66930200
Local order code	DVPROGXT150SONQ

SAP numerator – quantity per pack	1
Numerator – packs per outer box	12
SAP material	913700693666
Net Weight (Piece)	0.820 kg
