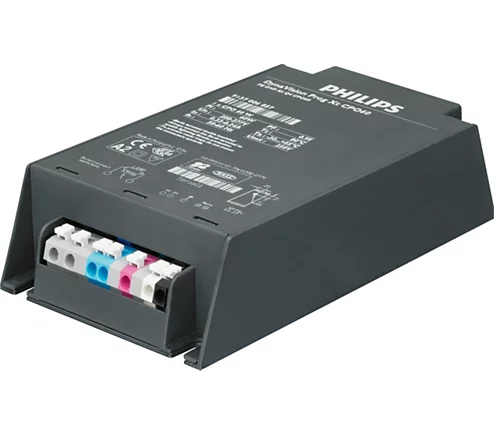

DynaVision Programmable Xtreme for CPO
https://www.lighting.philips.com/main/prof/lighting-electronics/hid/hid-electronic-outdoor/dynavision-programmable-xtreme-for-cpo/913700692866_EU/product#:~:text=Downloads-,Spec%20Sheet,-Size%3A1.0%20MB
Specifications
- Operating and Electrical
-
Input Current (Nom) |
0.26 A
|
Earth Leakage Current (Max) |
0.7 mA
|
Input Voltage |
208-240-277 V
|
Line Frequency |
50 to 60 Hz
|
Power Factor 50% Load (Min) |
0.93
|
Inrush Current Width |
0.24 ms
|
Input Frequency |
50 to 60 Hz
|
Inrush Current Peak (Max) |
28 A
|
- Product Data
-
Numerator - Quantity Per Pack |
1
|
Order product name |
HID-DV PROG Xt 45 CPO Q 208-277V
|
Full product code |
871829166914200
|
Order code |
913700692866
|
Net weight |
0.820 kg
|
EAN/UPC - Case |
8718291669159
|
Full product name |
HID-DV PROG Xt 45 CPO Q 208-277V
|
Numerator - Packs per outer box |
12
|
Material number (12NC) |
913700692866
|
- Approval and Application
-
Surge Protection (Common/Differential) |
EN61547 (L-L 2kV, L-G 4kV), 10 kV TIL
|
Environmental Standard |
ISO 14001
|
Approval Marks |
F-Marking
CE marking
ENEC certificate
VDE-EMV certificate
|
Safety Standard |
IEC 607, 609, 926, 928 [No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
|
- Controls and Dimming
-
- Mechanical and Housing
-
- General Information
-
Number of Lamps |
1 piece/unit
|
Number of Products on MCB (16A Type B) (Nom) |
11
|
- Wiring
-
Connector Type |
WAGO series 804
|
Cable Length From Device to Lamp |
10 m
|
- Temperature
-
Ambient temperature range |
-30 °C to 55 °C
|
T-Case Lifetime (Nom) |
80 °C
|
HID-DV DALI & LS Xt CPO Q
GDWD_IDVLSCPO_0004-Wiring diagram
