Wattage:
Voltage:
EAN:
Manufacturer:

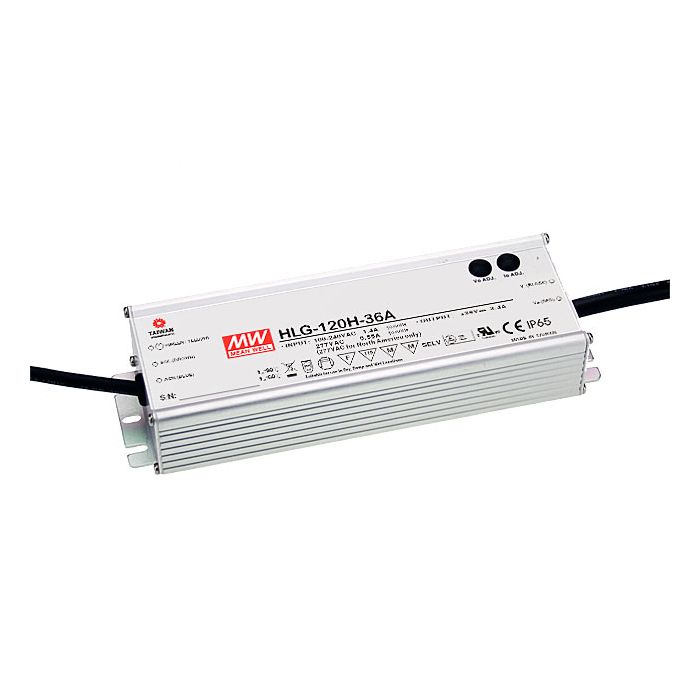

Constant current designUniversal AC input/ Full range (up to 305VAC)Protections: Short circuit/ Over voltage/ Over temperatureBuilt-in active PFC functionHigh efficiency up to 94%Cooling by free air convectionOutput current adjustable through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for dry/ damp/ wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Current 700mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 107~215 Dimensions 220x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90 ~ 305VAC, 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120H-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Current 700mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 107~215 Dimensions 220x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90 ~ 305VAC, 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120H-C-spec.pdf
