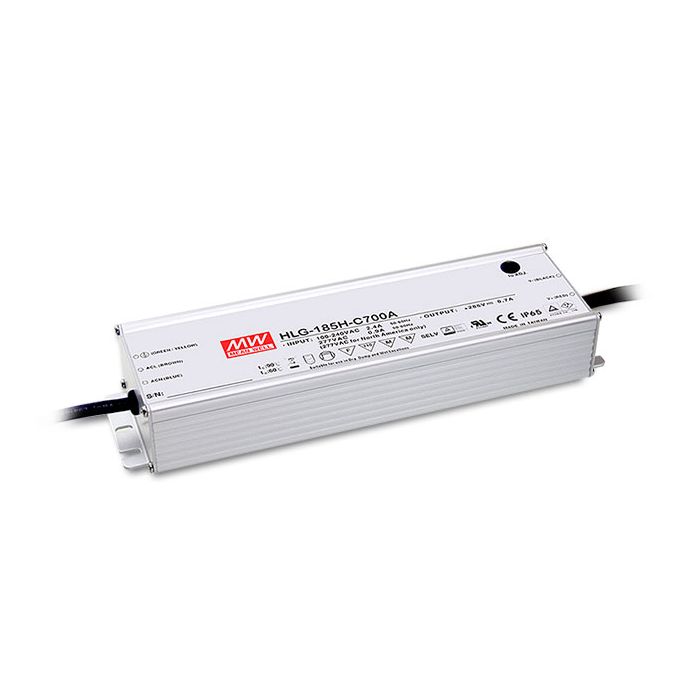

HLG-185H-C700B - Mean Well LED Driver HLG-185H-C700B 200W 700mA

MeanwellSKU: HLG-185H-C700B

Price:
Sale price£69.83

Wattage:
Voltage:
EAN:

Manufacturer:

Constant current designOutput voltage and C.C level can be adjusted through output cableProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Universal AC input (up to 305VAC) / Full rangeIP67 design for indoor or outdoor installationsHigh efficiency up to 94% Cooling by free air convectionBuilt-in active PFC function5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 200 Output Current 700mA Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 228x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (¡Ù50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet HLG-185H-C-spec_5.pdf
