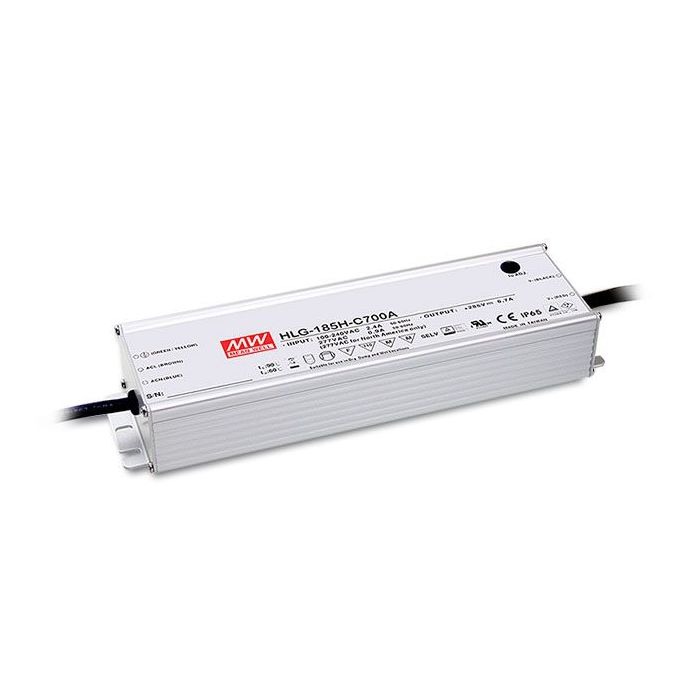

HLG-185H-CBS - Mean Well HLG-185H-C Series IP67 Rated LED Driver 200W 500mA – 1400mA

MeanwellSKU: HLG-185H-CBS

Sale price£69.83



Constant current designOutput voltage and C.C level can be adjusted through output cableProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Universal AC input (up to 305VAC) / Full rangeIP67 design for indoor or outdoor installationsHigh efficiency up to 94% Cooling by free air convectionBuilt-in active PFC function5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 185 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 77 x 40 x 29 (LxWxH) mm EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to TUV EN60950-1, EN61347-2-13, UL8750 Output Voltage Options Single Working Temperature -30°C~+70°C PDF Datasheet APC-16-spec_1.pdf
