Wattage:
Voltage:
EAN:
Manufacturer:
Output voltage and C.C level can be adjusted through internal potentiometer.
IP65 design for indoor or outdoor installations.
Protections: Short circuit / Over current / Over voltage / Over temperature.
Other features: Universal AC input (up to 305VAC) / Full range.
High efficiency up to 95% Output current adjustable through output cable or internal potentiometer.
Cooling by free air convection.
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5).
Built-in active PFC function, PF>0.9 for 60% of load or higher.
5 years warranty.
More Information:

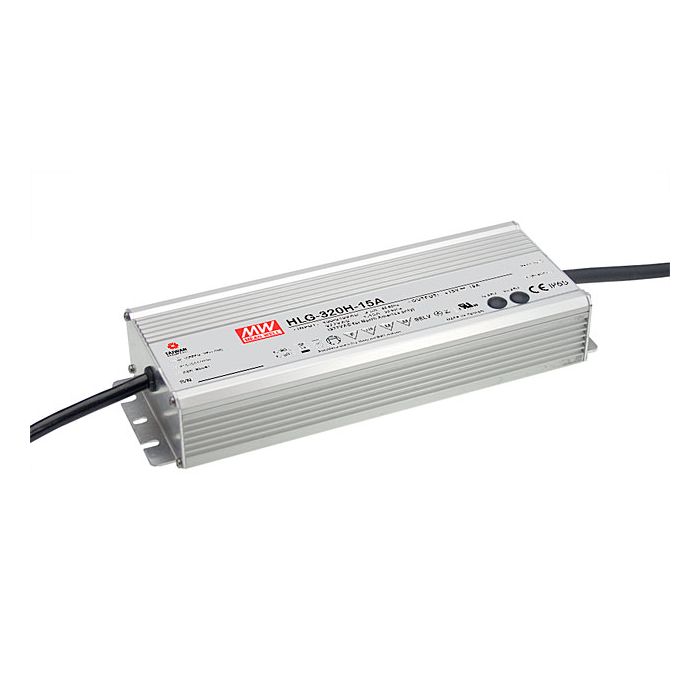

Manufacturer: Mean Well
Output Wattage (W): 320
Output Voltage: 24V
Dimmable (Type): AC phase-cut DC Output Adjustment +/-6% rated output voltage Dimensions: 252 x 90 x 43.8
EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage: 90~305VAC, 127~431VDC
Safety Standards: UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
Output Voltage Options: Single
Working Temperature: -40~+70°C
