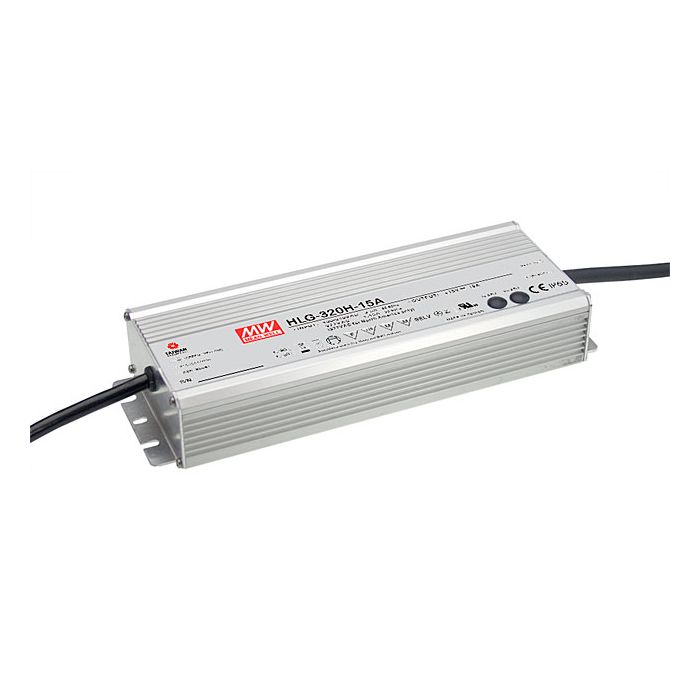

HLG-320H-42A - Mean Well LED Driver HLG-320H-42A 320W 42V

Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Voltage 42V DC Output Adjustment +/-6% rated output voltage Dimensions 252 x 90 x 43.8 EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1 Output Voltage Options Single Working Temperature -40-+70°C (Refer to "Derating Curve") PDF Datasheet HLG-320H-spec_11.pdf
