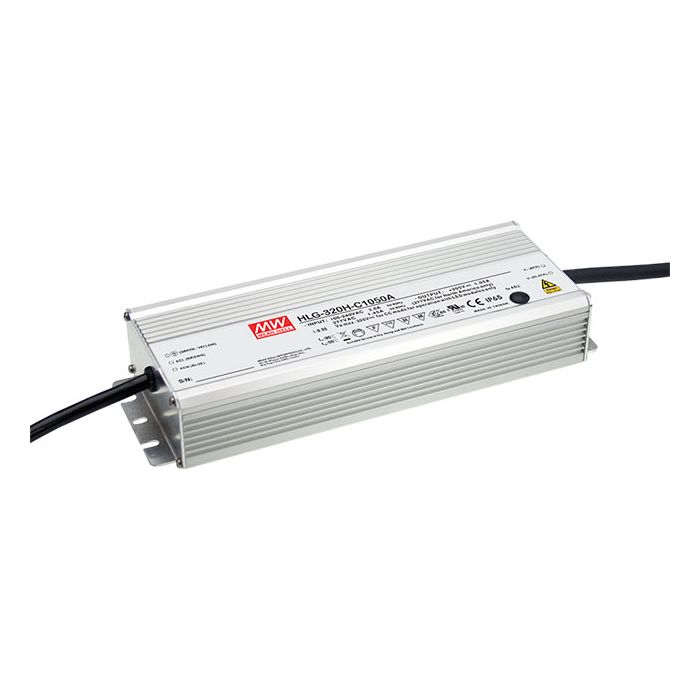

HLG-320H-C1400B - Mean Well Dimmable LED Driver HLG-320H-C1400B 320W 1400mA

MeanwellSKU: HLG-320H-C1400B

Sale price£142.47



Constant current design Metal housing with class I design Protections: Short circuit / Over voltage / Over temperature Other features: IP67 design for indoor or outdoor installations 3 in 1 dimming; Smart timer dimming Typical lifetime >62000 hours 7 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current 1400mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 234 Dimensions 252x 90x 43.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) Input Voltage 90-305VAC 127-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to “Output load vs temperature” section of the datasheet) PDF Datasheet HLG-320H-C-SPEC.PDF
