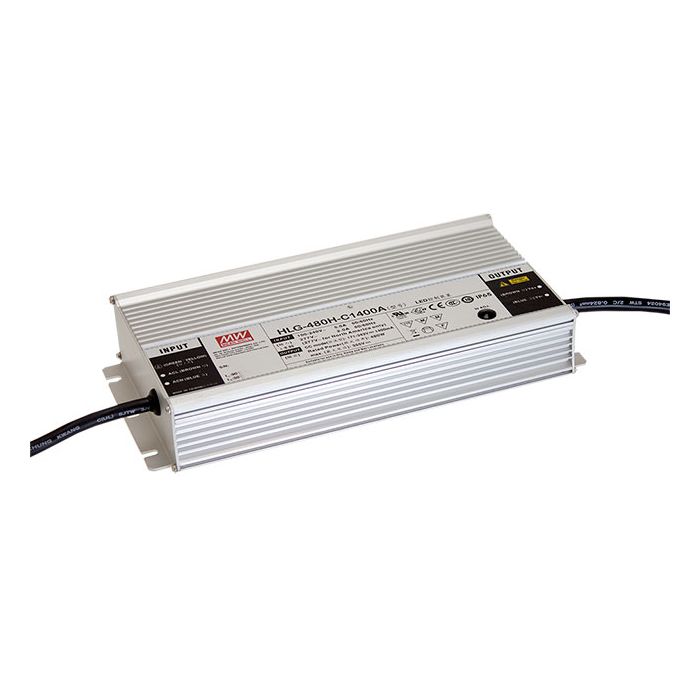

HLG-480H-C1400A - Mean Well LED Driver HLG-480H-C1400A 480W 1400mA

Sale price£212.29


A Type: Io adjustable through built-in potentiometer and environment adaptivenessB Type: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptivenessConstant current designProtections: Short circuit / Over voltage / Over temperatureOther features:IP67 / IP65 design for indoor or outdoor installationsMetal housing with class I designFunction options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimmingIP67 design for indoor or outdoor installationsTypical lifetime >62000 hours7 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 480 Output Current 1400mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 171~343 Dimensions 262x 125x 43.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) Input Voltage 90-305VAC 127-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+90°C (Refer to “Output load vs temperature” section of the datasheet) PDF Datasheet HLG-480H-C-SPEC.PDF
