Wattage:
Voltage:
EAN:
Manufacturer:

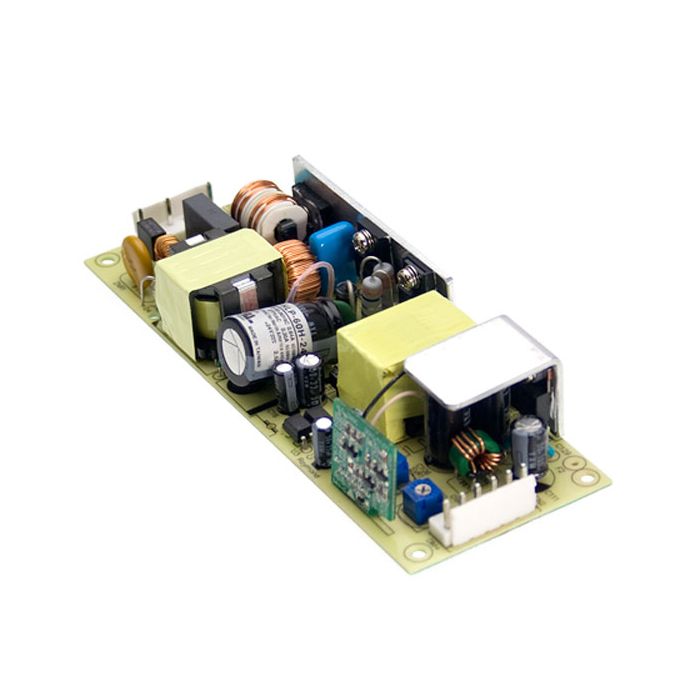

Built-in constant current limiting circuit (C.V.+C.C.mode)Built-in active PFC function, PF>0.95Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input / Full rangeOutput constant current level adjustableClass 2 power unitCooling by free air convectionSuitable for built-in LED lighting systemBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-4,2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-3-13 approved; Design refer to EN60335-1, UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40-+70°C PDF Datasheet Meanwell-60H_1.pdf
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-4,2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-3-13 approved; Design refer to EN60335-1, UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40-+70°C PDF Datasheet Meanwell-60H_1.pdf
