Wattage:
Voltage:
EAN:
Manufacturer:

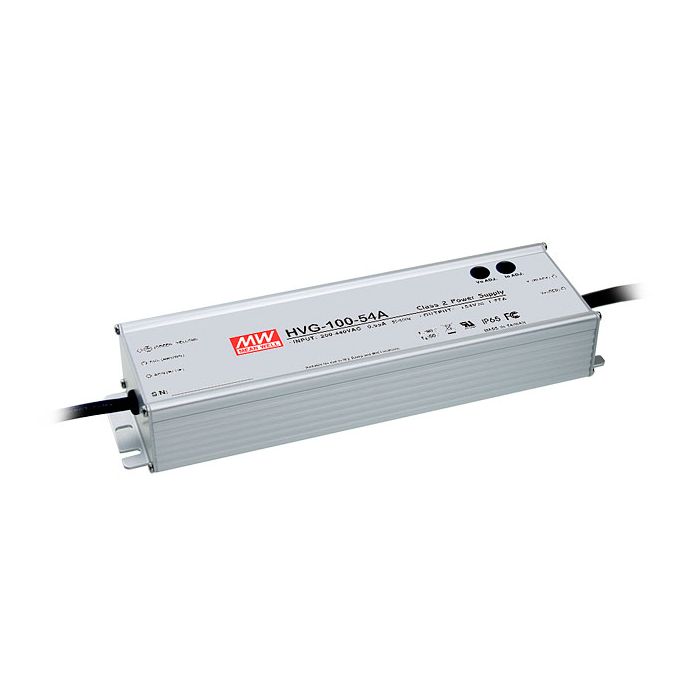

Output voltage and C.C level can be adjusted through internal potentiometerWide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP65 design5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Voltage 42V DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec_9.pdf
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Voltage 42V DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec_9.pdf
