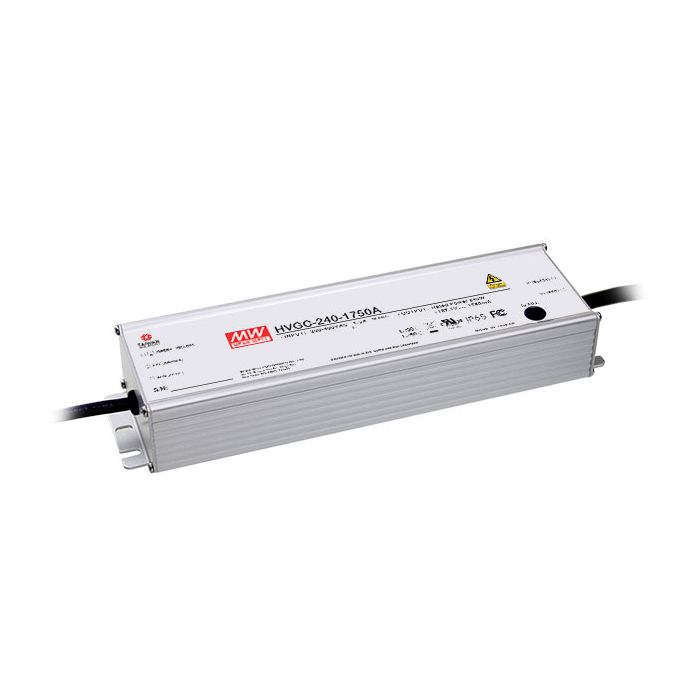

HVGC-240-S - Mean Well HVGC-240 Series LED Driver 240W 350mA - 1400mA

Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 240 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 254.2x 68x 38.8 EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750 (type “HL”), CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase=-40~+90?C (Refer to "Derating Curve") PDF Datasheet HVGC-240-spec.pdf
