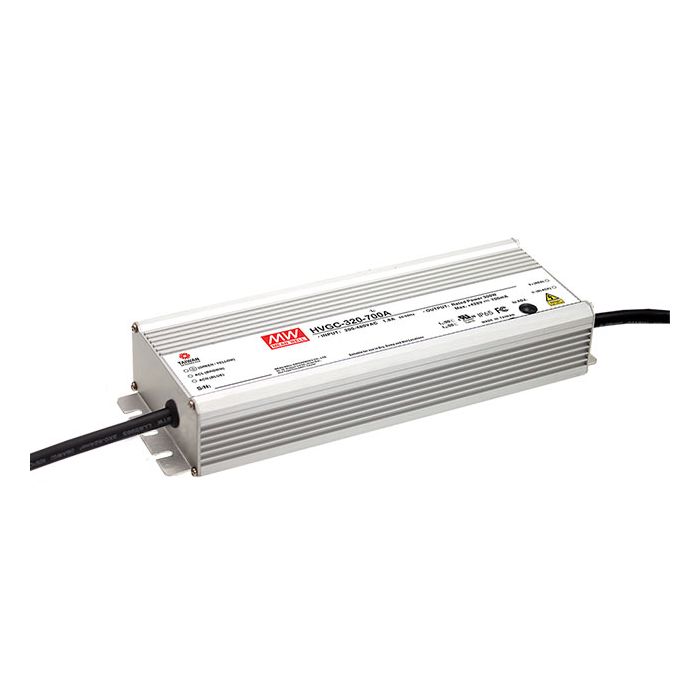

HVGC-320-3500B - Mean Well LED Driver HVGC-320-3500B 320W 3500mA

Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current 3500mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 45.7~91.4 Dimensions 262x 90x 43.8 EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750 (type ???HL???), CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Working Temperature Tcase=-40~+90???C (Refer to "Derating Curve") PDF Datasheet HVGC-320-spec.pdf
