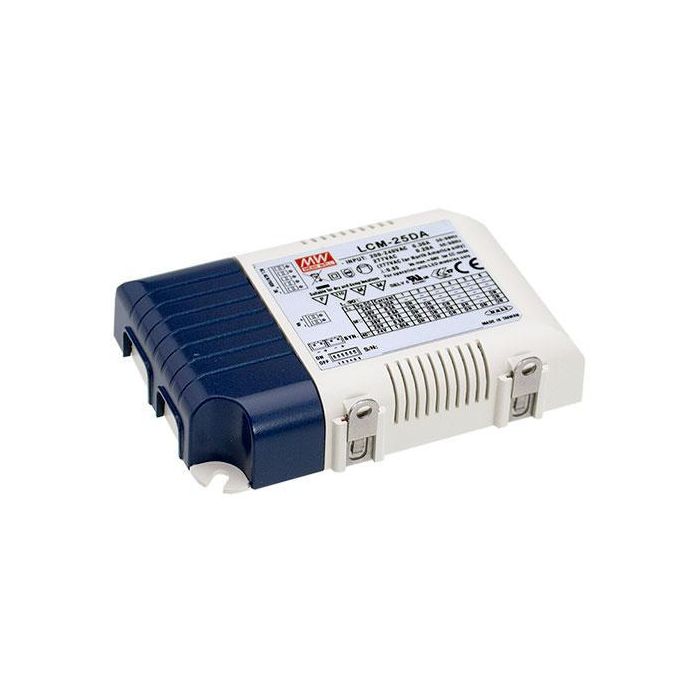

LCM-25DA - Mean Well LCM-25DA Selectable Current LED Driver 25W 350~1050mA

25W Constant current LED Power Supply LCM-25DA series

The Mean Well LCM-25DA series of constant current LED drivers fulfil the needs of intelligent digital dimming applications. The LCM-25DA is designed with DALI interface and push dimming function. This LED driver provides efficiency up to 86% and can be cooled by free air convection from -30 to +60°C ambient temperature. The LCM-25DA is a low profile, plastic enclosed power supply, with input and output connections located on the same side of the LED driver, allowing system designers to easily install the unit where space is limited. The LED driver accepts 180∼277Vac input and has built in PFC function, observing the harmonic current limitation per EN61000-3-2 Class C. The LCM-25DA also possesses 2kV heavy industry level surge immunity capability between line and neutral, following the related luminary requirements. Ideal applications of the LCM-25DA series of LED drivers are in LED commercial lighting, LED office lighting and indoor LED decorative lighting.

Output current level selectable by DIP switch
180∼277VAC input range
Built-in active PFC function
Short circuit and over temperature protection
Cooling by free air convection
Fully insulated plastic enclosure
IP20 rated
Class II power unit, no FG
Built-in DALI interface and push dimming function
No load power consumption ˂0.5W
Power supply synchronization function up to 10 units

Approvals

PFC / UL / CUL / ENEC / CB / CE
