LCM-40DA - Mean Well LCM-40DA Selectable Current LED Driver 40W 350~1050mA

MeanwellSKU: LCM-40DA

Price:
Sale price£45.43

Wattage:
Voltage:
EAN:

Manufacturer:

Product Details

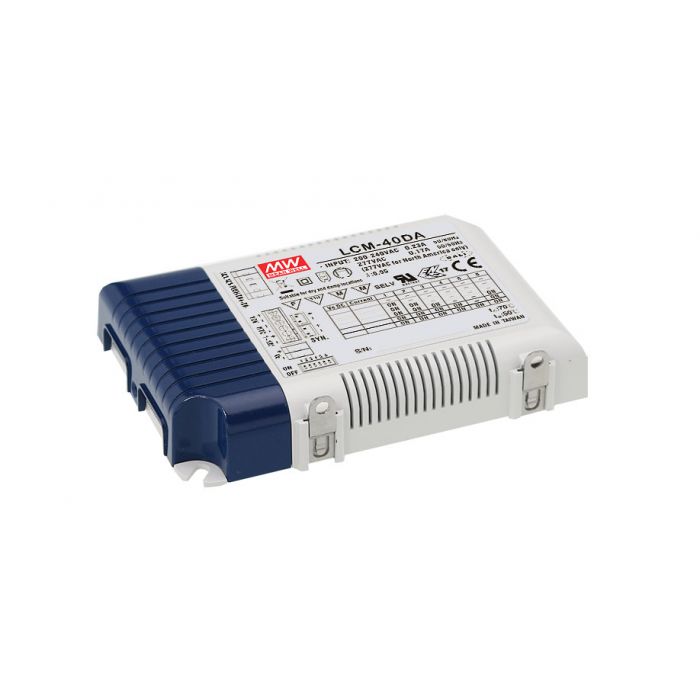

40W Constant current LED Power Supply LCM-40DA series


The LCM-40DA LED driver is a 40W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.


Output current level selectable by DIP Switch
180∼295V ac input only
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V/50mA auxiliary output
IP20 design
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications
3 years warranty



Mean Well LED Drivers, Constant Current


Specifications

Attribute Value
Input Voltage 180 → 295 V ac, 254 → 417 V dc
Output Voltage 2 → 100V
Operation Constant Current
Output Current 1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA
Maximum Output Power 42W
Dimming Operation DALI
AC or DC Input Voltage ac, dc
IP Rating IP20
Voltage Rating 180 → 295 V ac, 254 → 417 V dc
