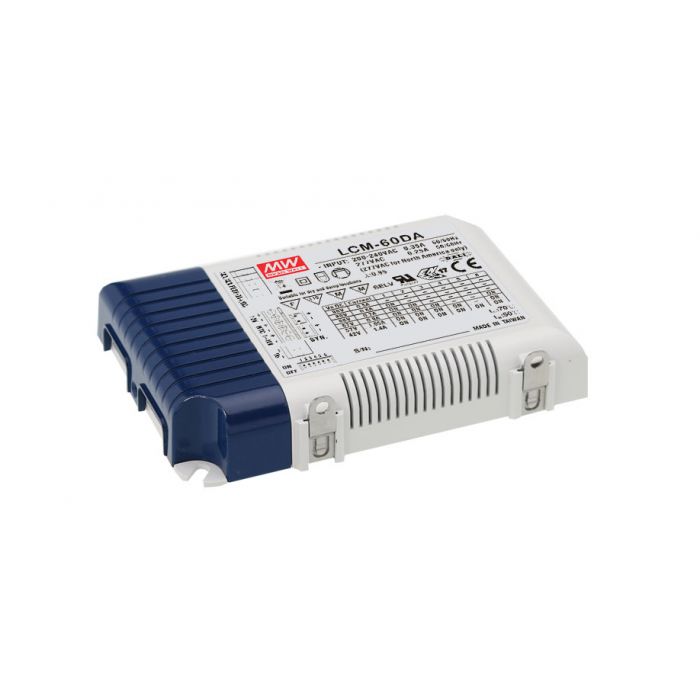

LCM-60DA - Mean Well LCM-60DA DALI Dimmable Selectable Current LED Driver 60W 500~1400mA

Sale price£49.85


Product Details

60W Constant current LED Power Supply LCM-60DA series

The LCM-60DA LED driver is a 60W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.

Output current level selectable by DIP Switch
180∼295VAC input only
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V/50mA auxiliary output
IP20 design
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications

Mean Well LED Drivers, Constant Current


Attribute Value
Input Voltage 180 → 295 V ac, 254 → 417 V dc
Output Voltage 2 → 90V
Operation Constant Current
Output Current 1.05 A, 1.4 A, 500 mA, 600 mA, 700 mA, 900 mA
Maximum Output Power 60.3W
Dimming Operation DALI
AC or DC Input Voltage ac, dc
IP Rating IP20
Voltage Rating 180 → 295 V ac, 254 → 417 V dc
